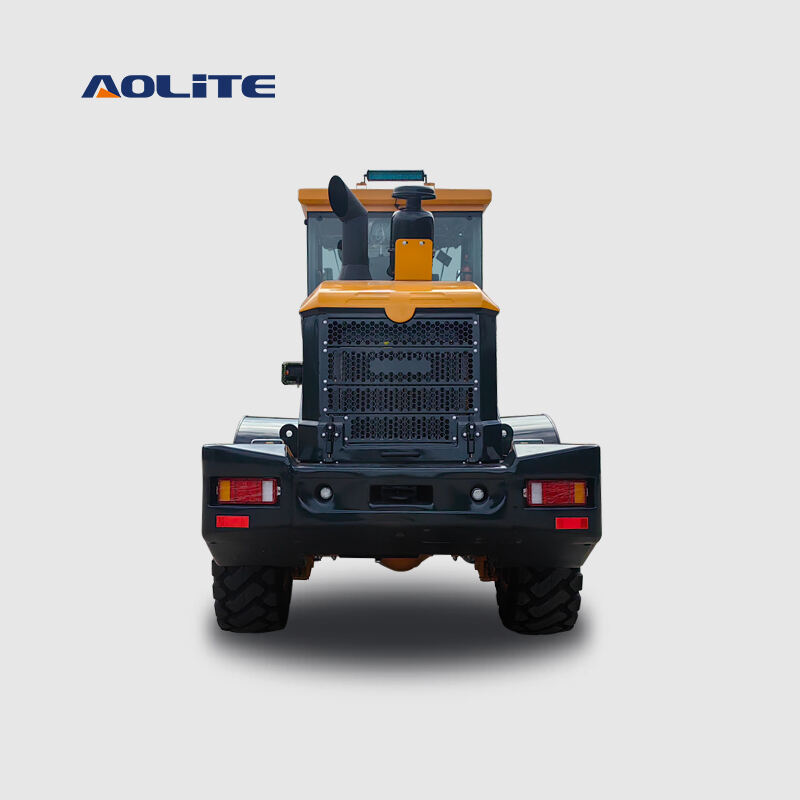

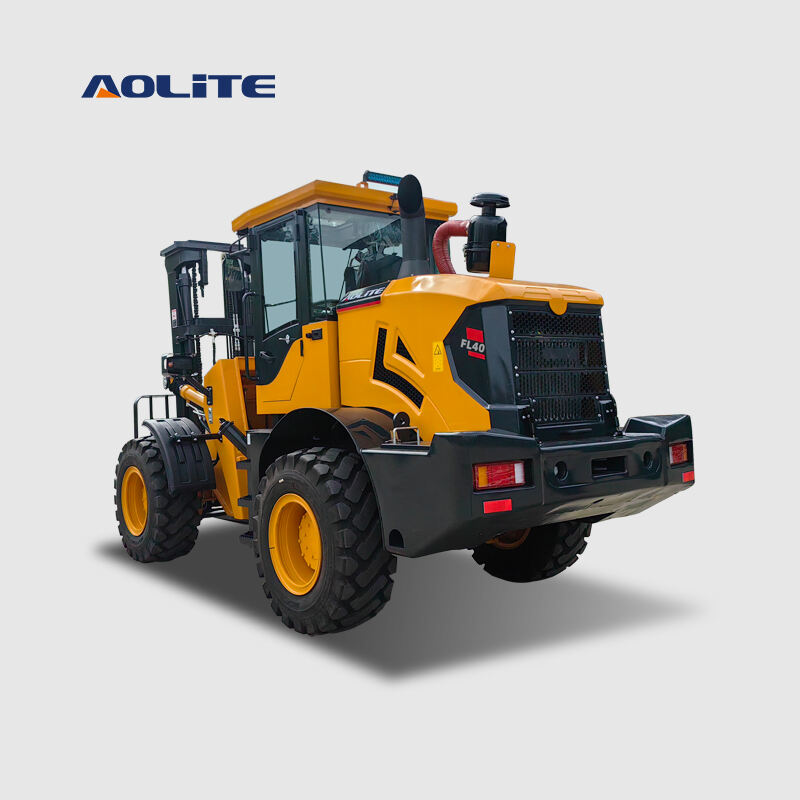

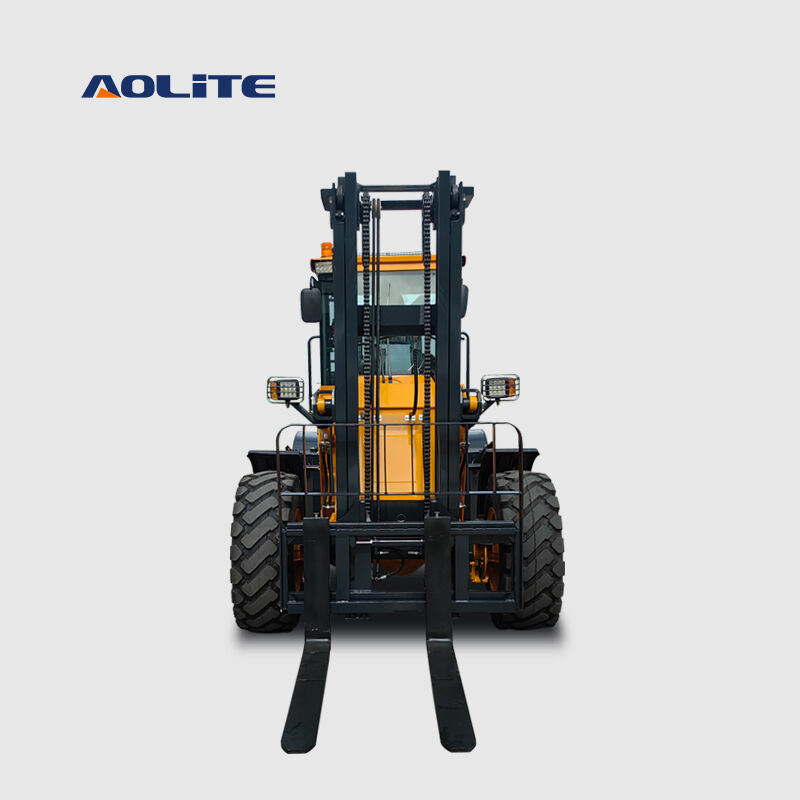

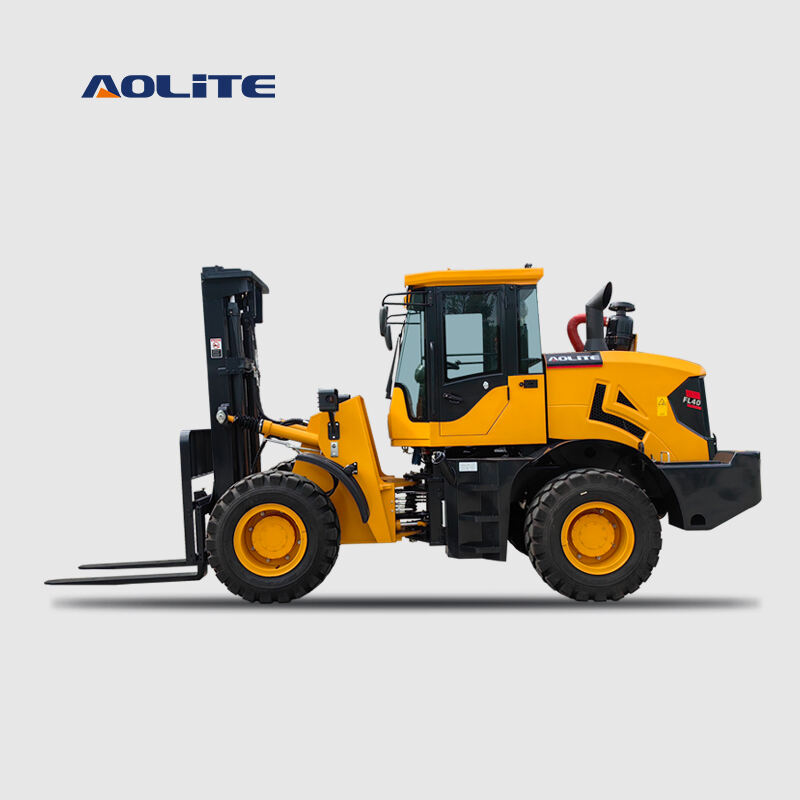

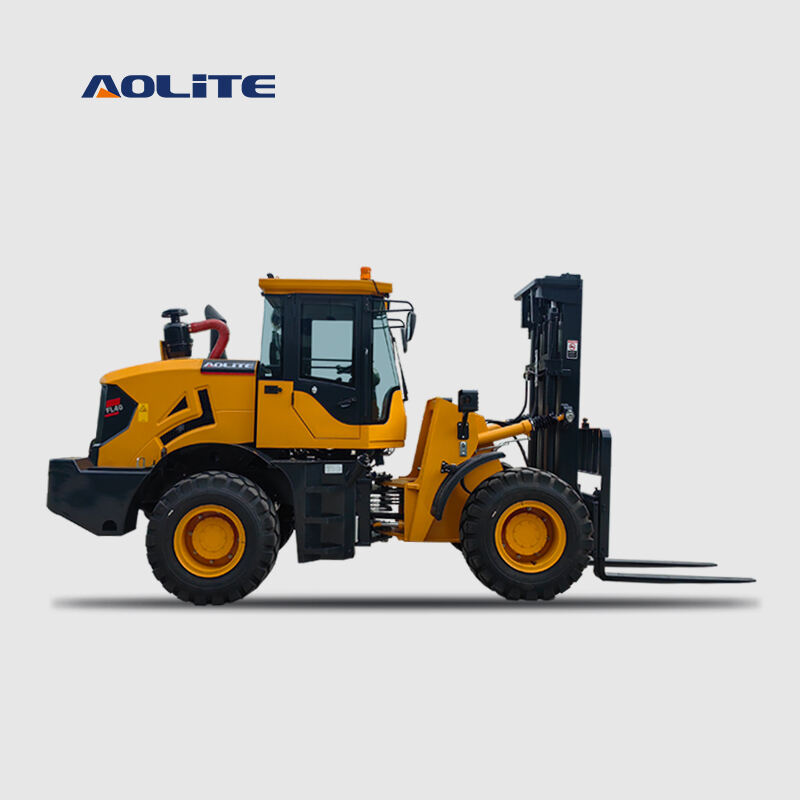

"AOLITE" brand FL40 Forklift loader
--Powerful Performance & High Efficiency
Equipped with YUNNEI YC4A90-T22 engine, rated power 66kW, rated speed 2300r/min, ensuring high efficiency in heavy-load and rough terrain operations.
--Superior Off-Road Capability
Hydraulic torque converter gearbox and big hub reduction axle, with low gear (6km/h for high torque) and high gear (20km/h), ideal for off-road and long-distance handling.
--High Load Capacity & Stability
Rated load 4000kg, operating weight 6315kg, wheelbase 2600mm, and wheel track 1685mm, providing exceptional stability under heavy loads.
| Rated Load | 4000 |
| Operating weight | 6315 |
| Dimension L*W*H(mm) | 6350x2080x2880 |
| Fork length(mm) | 1520 |
| Lift height(mm) | 4000 |
| Gate frame inclination front/back (°) | Front 6 / Back 12 |
| Wheel base(mm) | 2600 |
| Wheel thread(mm) | 1685 |
| Min. ground clearance(mm) | 200 |
| Max.steering angle(°) | ±35° |
| Engine model | YC4A90-T22 |
| Engine brand | YUNNEI |
| Rated power(kw) | 76 |
| Rated speed(r/min) | 2300 |
| Gearbox model | 280F |
| Transmission mode | Hydraulic torque converter |
| Low gear(km/h) | 6 |
| High gear(km/h) | 20 |
| Alxe model | big hub reduction axle |
| Tyre | 16/70-20 |
| Working brake | air push oil |
| Parking brake | handbrake clamp disc type |
--Exceptional Maneuverability
Max. steering angle ±35°, min. ground clearance 200mm, and mast tilt angle 6°(front)/12°(rear), ensuring agility in confined spaces.
AOLITE Brand FL40 wheel loader package:
-- 2 sets in 1*40HQ container
