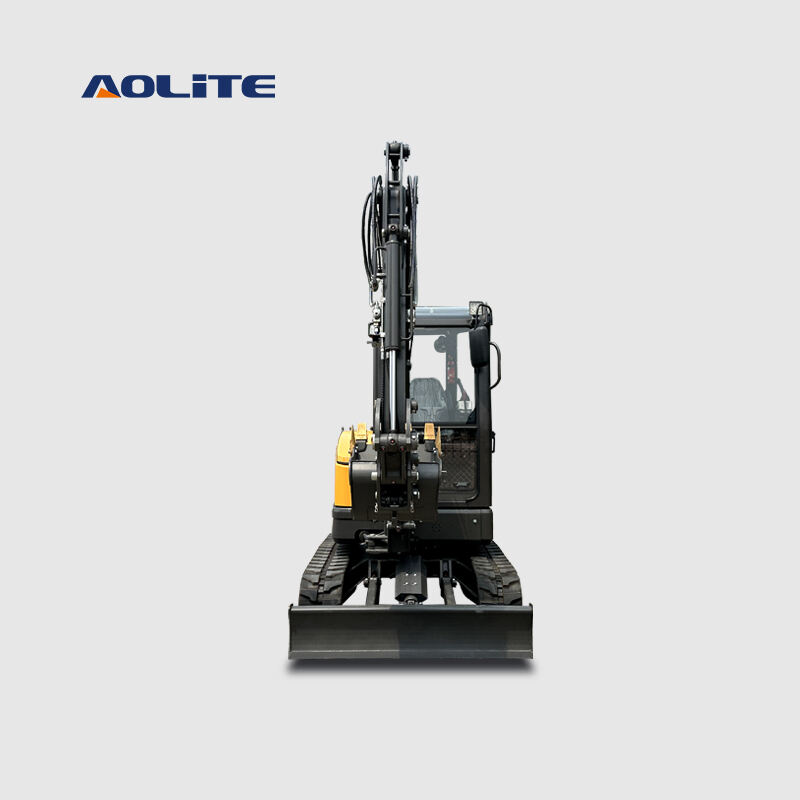

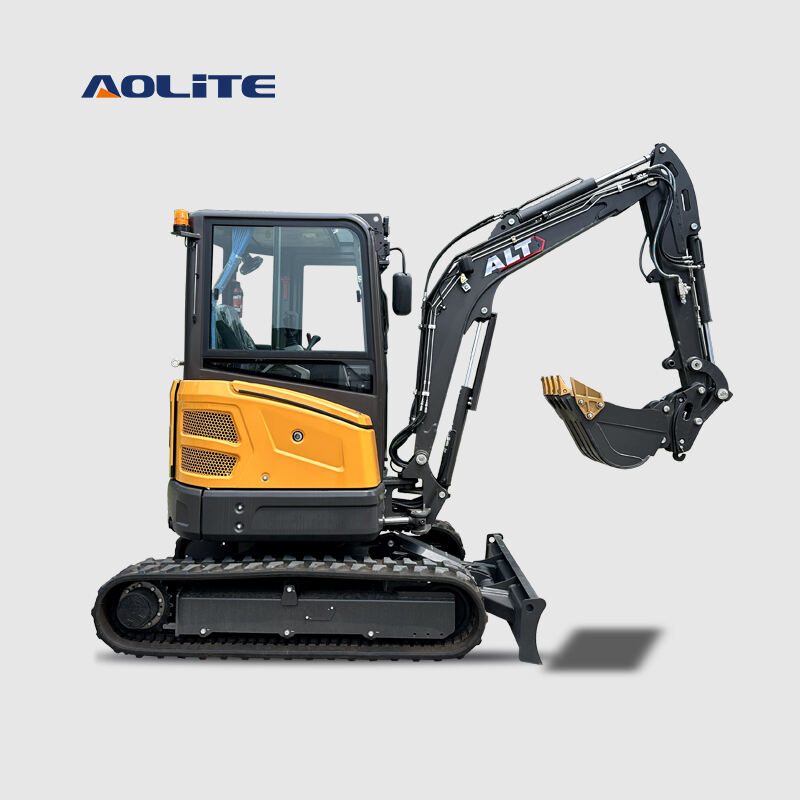

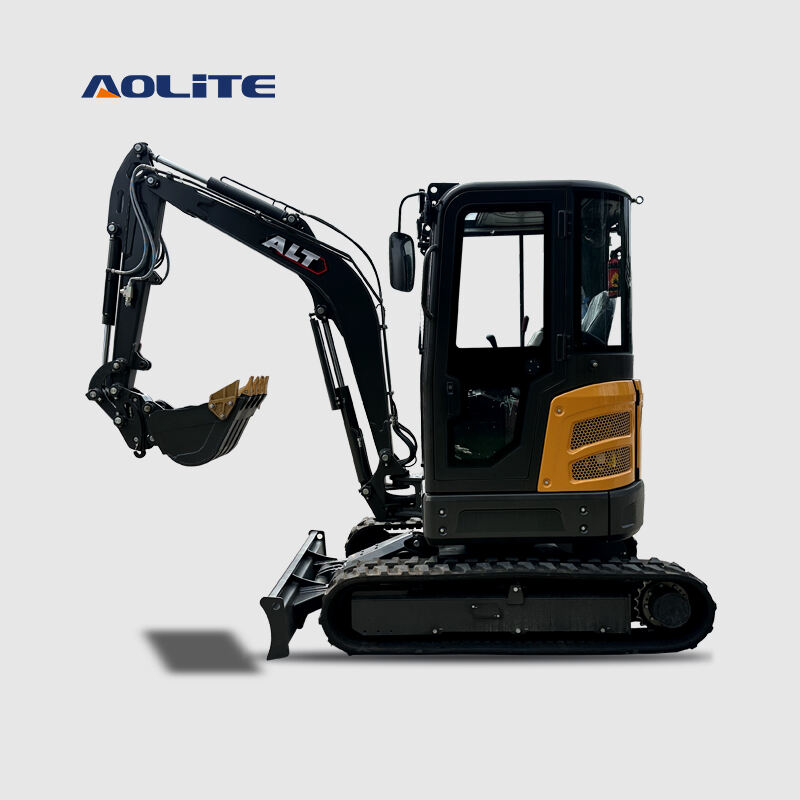

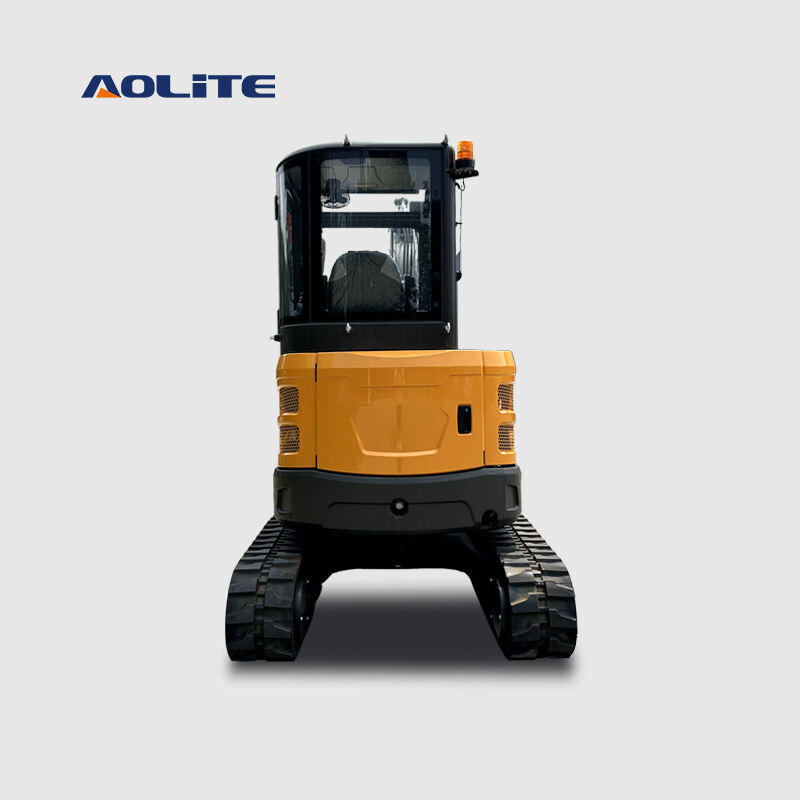

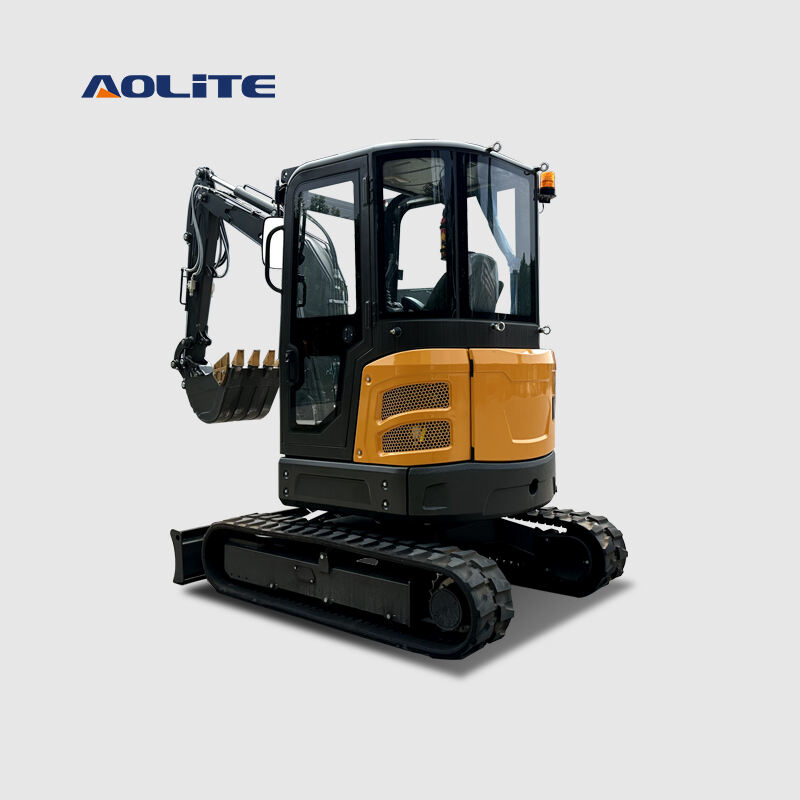

"AOLITE" brand WJ27 diesel crawler excavator
-- Compact & Superior Passability
Weighing only 2.75 tons with a ground pressure of 24Kpa, it's ideal for landscaping and confined worksites.
-- Cost-Effective Performance
Powered by a 14kW Kubota engine, optimized for medium-small projects with an ideal balance of power and economy.
-- Enhanced Maneuverability
With a compact size of 4.2m length and 1.55m width, it offers exceptional agility in extremely tight spaces.
-- Unique Wide Boom Swing
Aunique 69° left boom swing angle provides outstanding asymmetric flexibility for working close to walls.
-- Lower Maintenance Costs
Smaller tank capacities (23L fuel / 24L hydraulic) and optimized systems reduce long-term operating costs.
| ENGINE | |
| Emission Standard | EPA4/EURO 5 |
| Make | KUBOTA |
| Model | D1105 |
| Power /Rotation speed | 14kW(19HP)@2200rpm |
| Number of cylinder | 3 |
| Type | Water cooled, in-line,4-stroke,mechnical pump. Naturally aspirated |
| Max. torque of engine | 70.3Nm/ 1600rpm |
| Displacement of engine | 1.123L |
| Engine oil capacity | 5.1L |
| TRACK SYSTEM | |
| Maximum Travel speed(High-Low speed) | 2.6/4.5km/h |
| Width of track shoe(Rubber ) | 300mm |
| Carrier roller(one side) | 1 |
| Support wheel(one side) | 3 |
| PERFORMANCE PARAMETER | |
| Standard bucket capacity | 0.1m³ |
| Width of standard bucket | 500mm |
| Swing speed | 10 rpm |
| Max. Grade ability | 58% |
| Max. Bucket digging force | 23.5KN |
| Max. Arm digging force | 14KN |
| Hydraulic system pressure | 20.5Mpa |
| Ground pressure | 24Kpa |
| Machine weight | 2750kg |
| Fuel tank capacity | 23L |
| Hydraulic oil tank capacity | 24L |
| Flow of main pump(Variable piston pump) | 61.6L/ min |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 4195mm*1550mm*2480mm |
| Axle base(Track length on ground) | 1565mm |
| Track gauge | 1250mm |
| Min.Ground clearance | 286mm |
| Swing radius at tail | 860mm |
| Boom length | 2200mm |
| Arm length | 1300mm |
| WORKING RANGE | |
| Max. Digging height | 4427mm |
| Max. Dumping height | 3005mm |
| Max. Digging depth | 2830mm |
| Max. Vertical digging depth | 2530mm |
| Max. Digging radius | 4835mm |
| Min .swing radius at front | 2160mm |
| Max. Lifting height of blade | 308mm |
| Max. Cutting depth of blade | 363mm |
| Boom swing angle(Left) | 69° |
| Boom swing angle(Right) | 45° |
AOLITE Brand WJ27 crawler excavator package:
-- 1 set in 1*20GP container
-- 5 sets in 1*40HQ container
