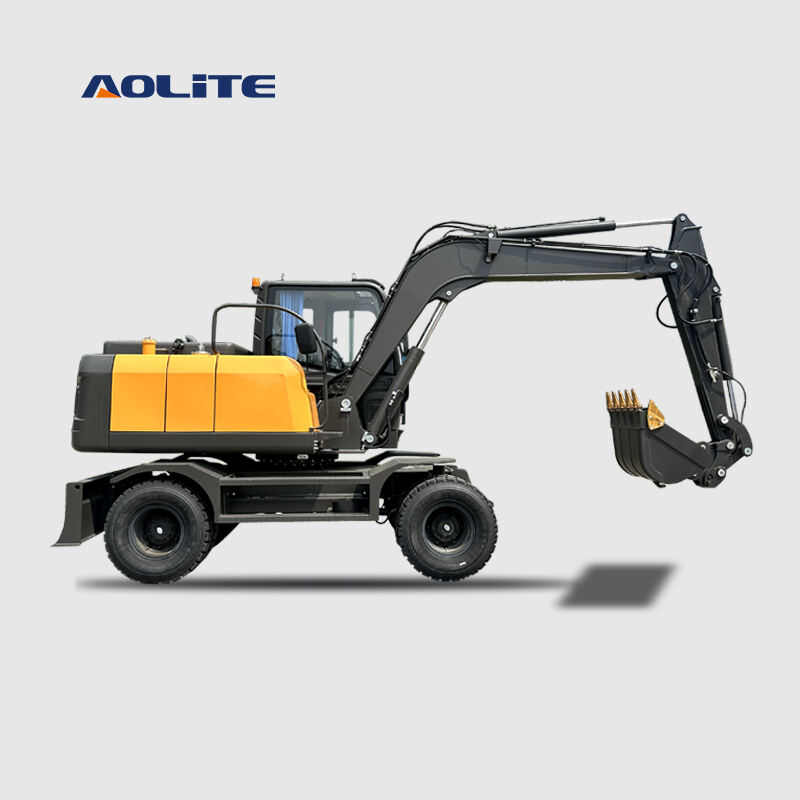

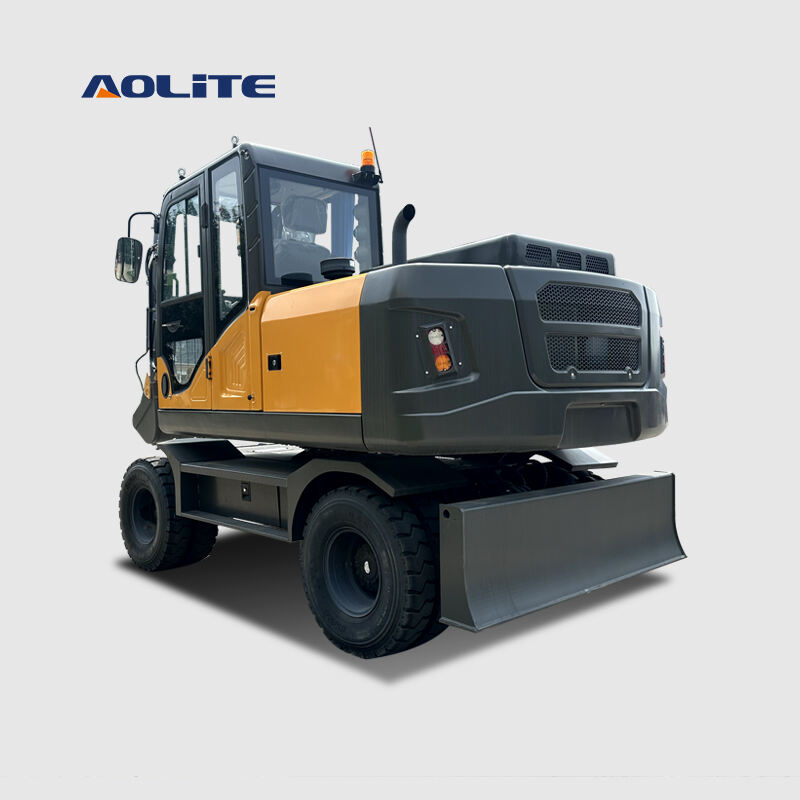

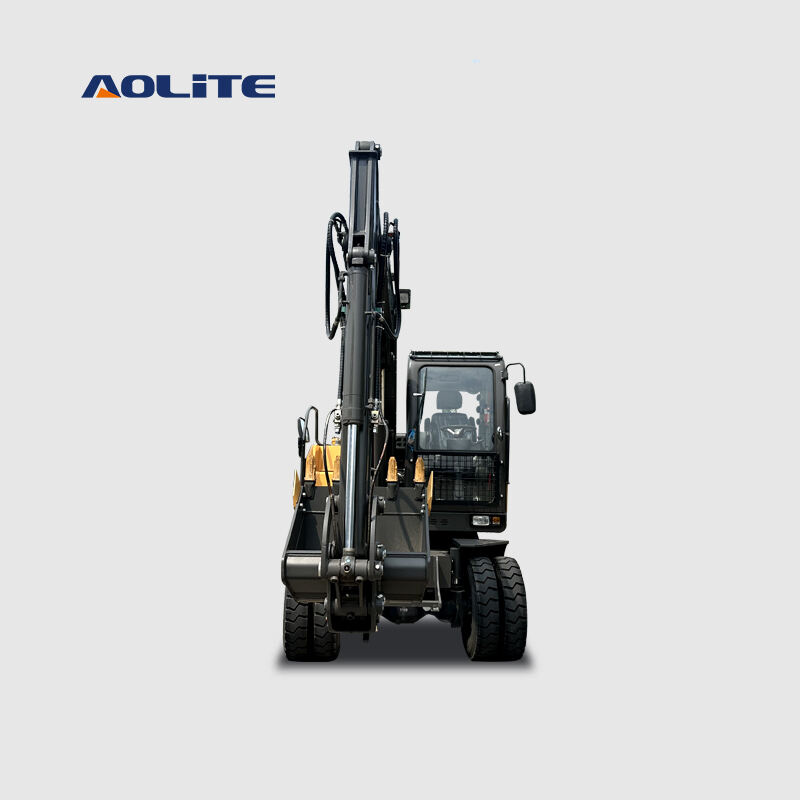

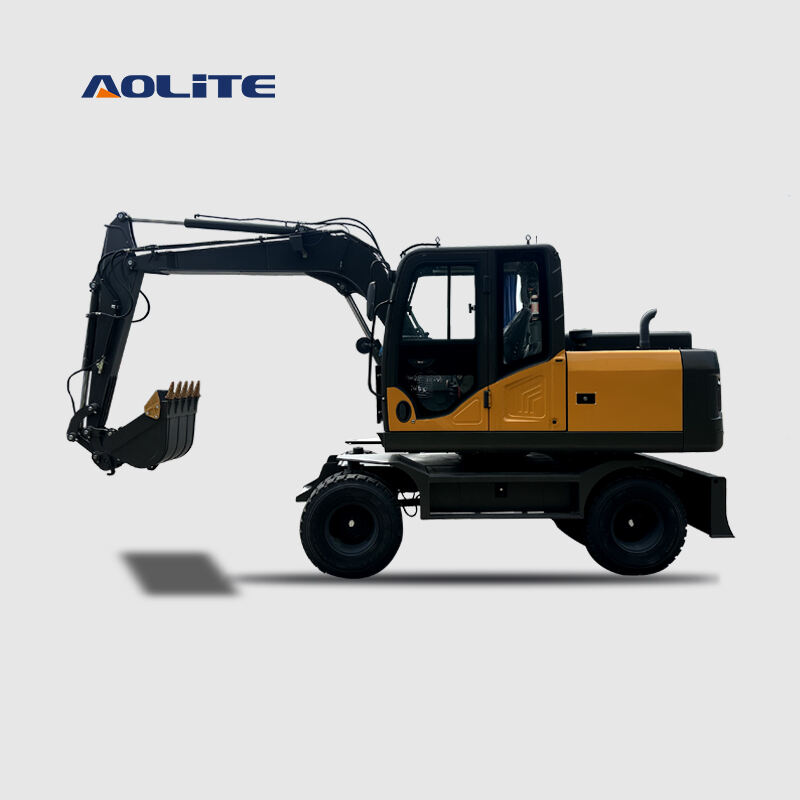

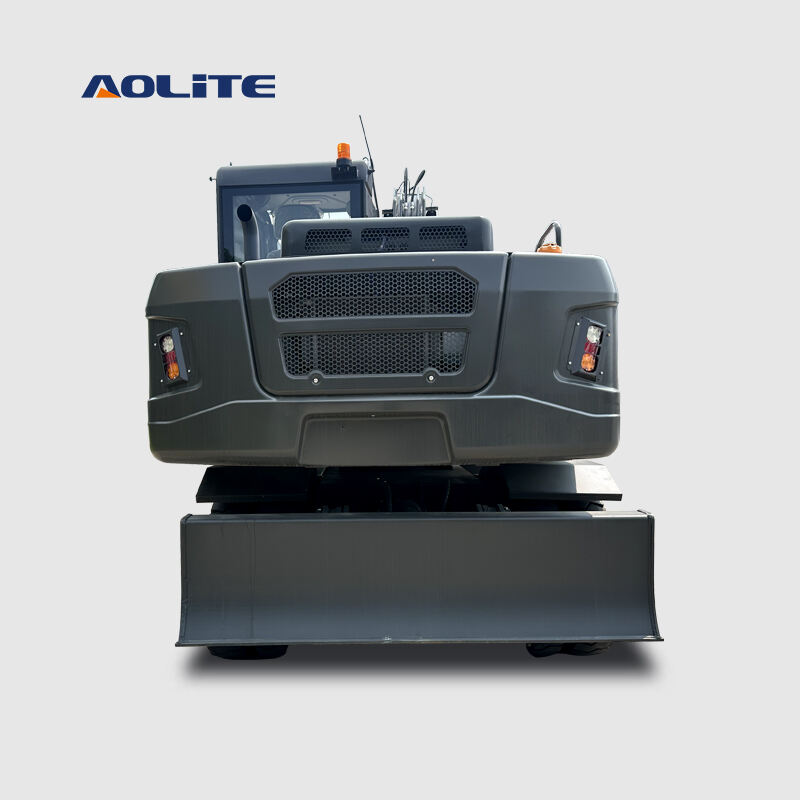

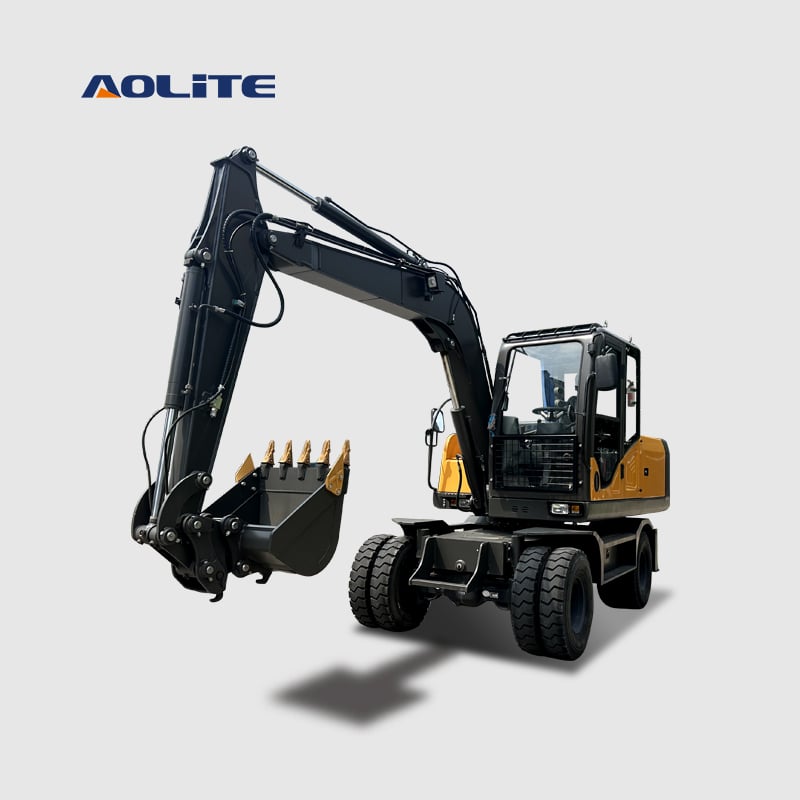

"AOLITE" brand LW75 diesel wheel excavator
-- High Mobility for Road Travel
With a travel speed up to 30km/h and steering wheel control, it moves between sites like a vehicle, eliminating the need for trailers.
-- Balanced Power & Cost-Effectiveness
The 62.5kW Yuchai engine and 5-forward-gear mechanical drive offer an optimal balance of power and affordability.
-- Compact Body with Good Clearance
Its relatively compact size and 260mm ground clearance provide excellent passability on rough terrain.
-- Easy Maintenance & High Reliability
The mechanical drive and air brake system feature a simple, proven design for easy maintenance and high reliability.
| ENGINE | |
| Emission Standard | China Stage III |
| Make /Model | YUCHAI/YC4DK85 |
| Power /Rotation speed | 62.5kW(85HP)@2200rpm |
| TYPE | 4-stroke,In-line,Water Cooling ,turbocharged |
| DRIVING SYSTEM | |
| Maximum Travel speed | 30km/h |
| Tire model/Number of tires | 825-16/8 |
| Driving type | Mechanical drive(Front/Rear) |
| Steering type | Steering wheel |
| TRANSMISSION | |
| Forward gears/Reverse gears | 5/1 |
| BRAKE SYSTEM | |
| Driving brake | Air break |
| Parking brake | Air break |
| Emergency brake | Foot brake |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.21m³ |
| Swing speed | 12rpm |
| Maximum Grade ability | 25° |
| Maximum Bucket digging force | 45KN |
| Maximum Arm digging force | 36KN |
| Hydraulic system pressure | 20Mpa |
| Machine weight | 7000kg |
| Fuel tank | 118L |
| Hydraulic oil tank | 110L |
| Boom length | 3350mm |
| Arm length | 1750mm |
| Upper structure width | 2087mm |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 6300mm*2044mm*2850mm |
| Height of cabin | 2850mm |
| Wheel base/Tread | 2400mm/1675mm |
| Minimum Ground clearance | 260mm |
| Swing radius at tail | 1940mm |
| WORKING RANGE | |
| Maximum Digging height | 6297mm |
| Maximum Dumping height | 4677mm |
| Maximum Digging depth | 3612mm |
| Maximum Vertical digging depth | 2460mm |
| Maximum Digging radius | 6248mm |
| Minimum swing radius | 2347mm |
| Maximum lifting height of dozer blade | 310mm |
| Maximum cutting depth of dozer blade | 132mm |
AOLITE Brand LW75 wheel excavator package:
-- 2sets in 1 * 40HQ container
