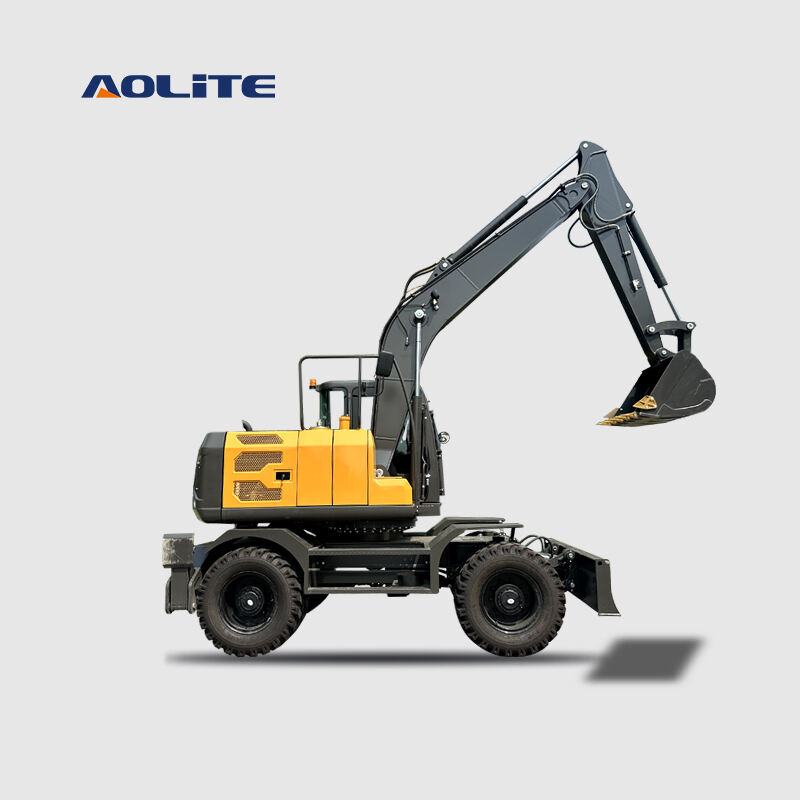

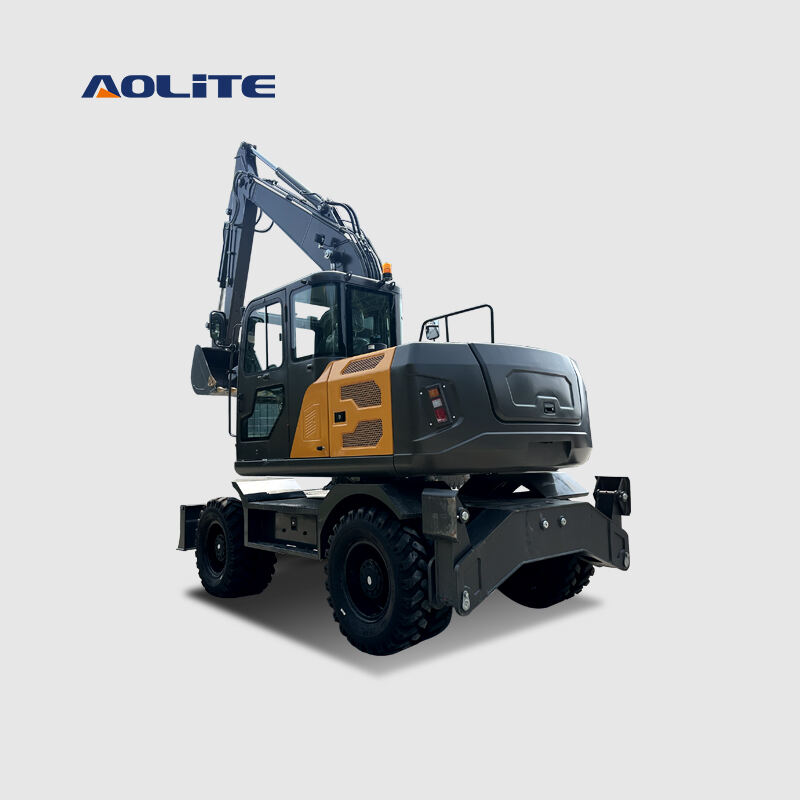

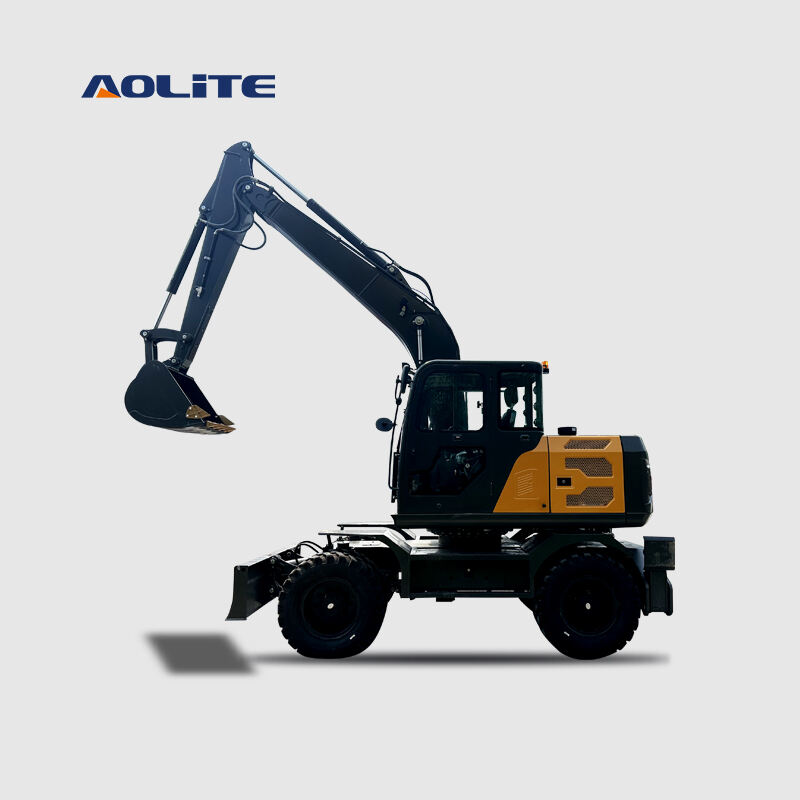

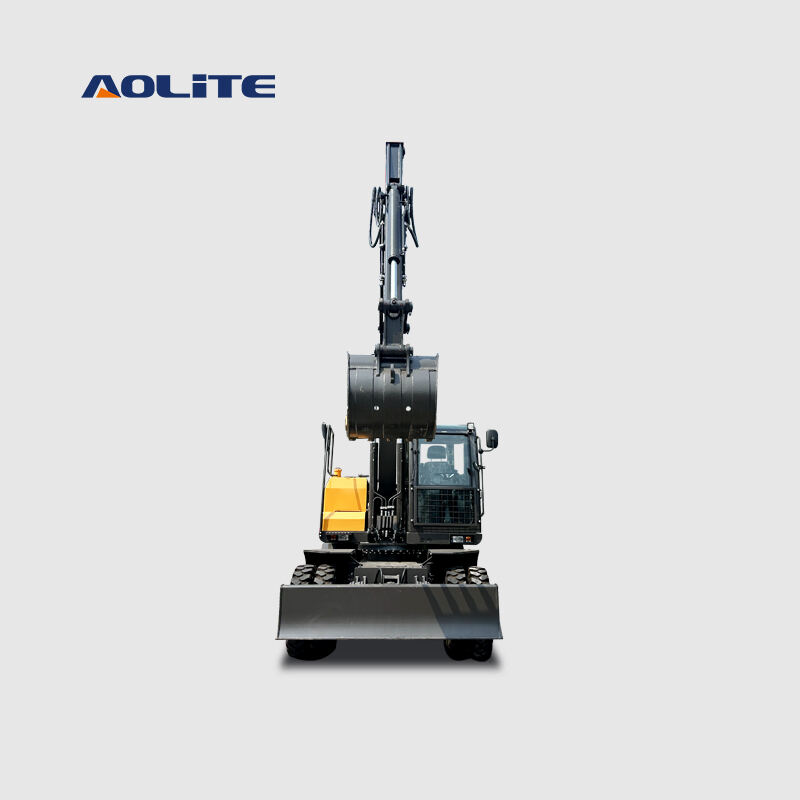

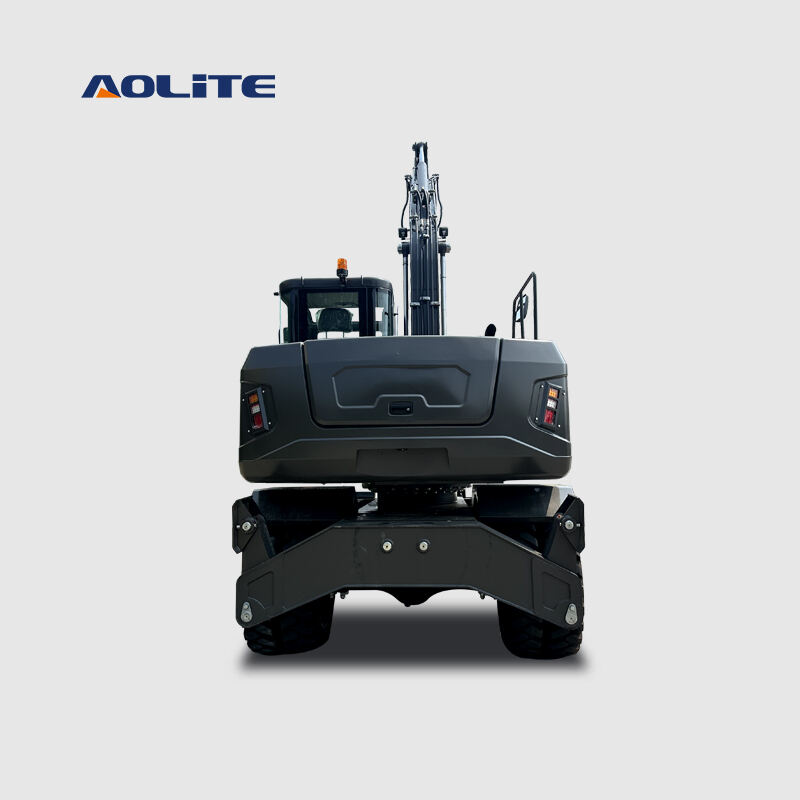

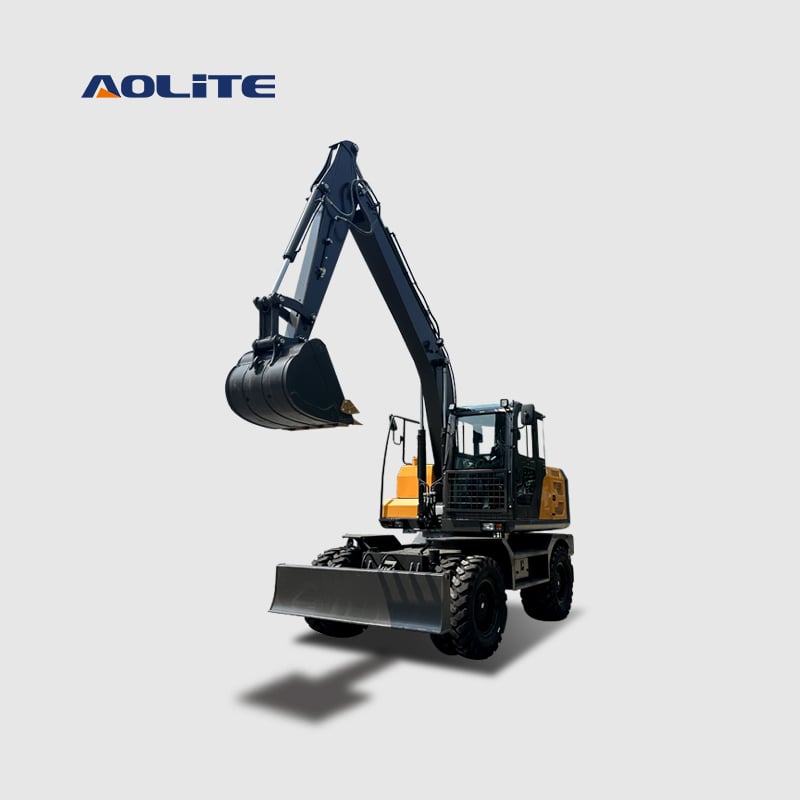

"AOLITE" brand LW120 diesel wheel excavator
-- Superior Power for High Efficiency
Equipped with a 74kW engine and 75KN digging force, it's built for high-intensity, heavy-duty working conditions.
-- Large Platform & Extensive Reach
With an 8.3m max digging height and 7.58m reach, it outperforms standard mid-size wheeled excavators on range.
-- High-Pressure Hydraulics for Quick Response
A higher 35MPa hydraulic system pressure ensures quicker and more powerful compound movements, boosting cycle times.
-- Superior Clearance for Rough Terrain
A class-leading 335mm ground clearance allows it to easily handle more complex and rugged terrain.
| Specifications | |
| Bucket Capacity | 0.4 |
| Swing Speed | 11 |
| Gradeablity | 25 |
| Max.Bucket Digging Force | 75 |
| Max.Arm Digging Force | 52 |
| Engine Model | YC4DK100 |
| Power/revolution speed | 74/2200 |
| Tire Model | 9.00-20 |
| System Pressure | 35 |
| Machine size | |
| Dimension Length*Width*Height | 7285*2270*3010 |
| Cabin Height | 3010 |
| Axle Base | 2500 |
| Wheel(track) Distance | 1250 |
| Minimum ground clearane | 335 |
| Tail Swing Radius | 2160 |
| WORKING RANGE | |
| Maximum Digging height(mm) | 8300 |
| Maximum Dumping height(mm) | 6380 |
| Maximum Digging depth(mm) | 4330 |
| Maximum Vertical digging depth(mm) | 3950 |
| Maximum Digging radius(mm) | 7580 |
| Minimum swing radius(mm) | 2160 |
| Max.Dozer Blade Lifting Distance(mm) | 385 |
| Max.Dozer Blade Cutting Distance(mm) | 70 |
AOLITE Brand LW120 wheel excavator package:
-- 1 set in 2*40HQ container
