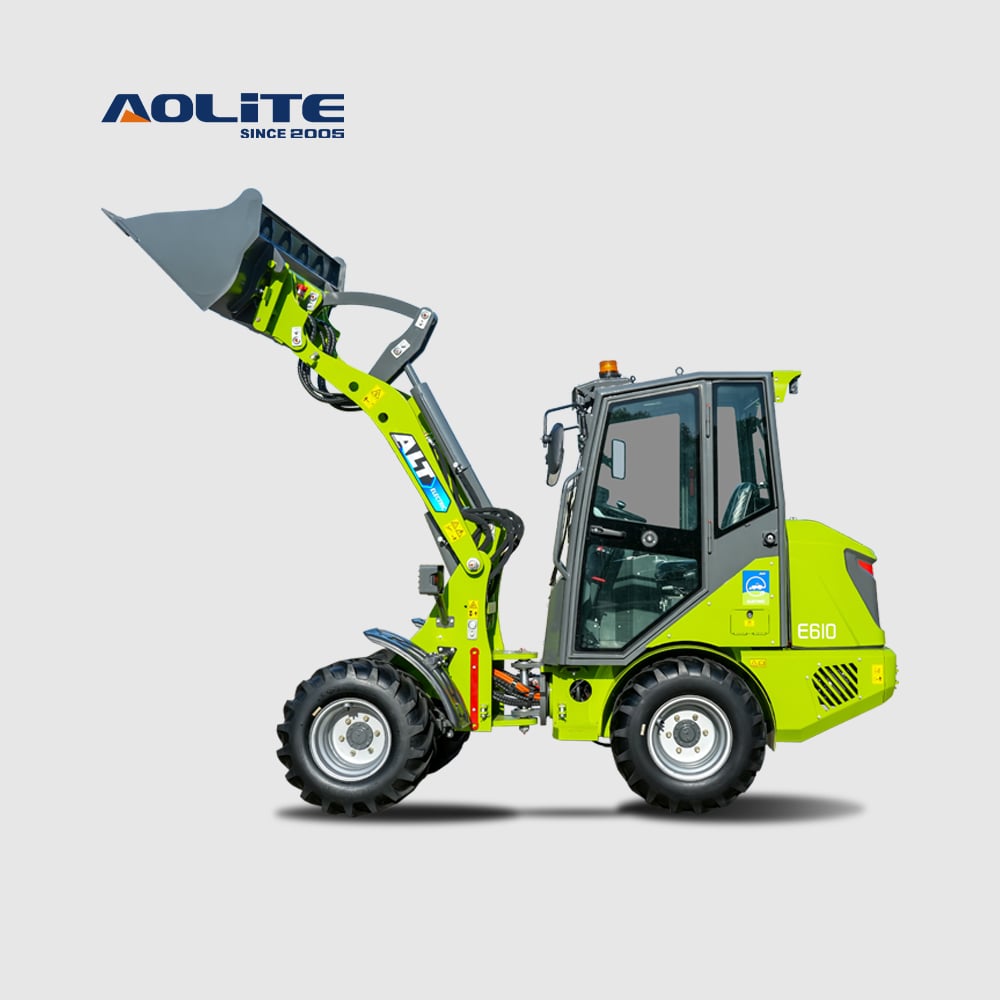

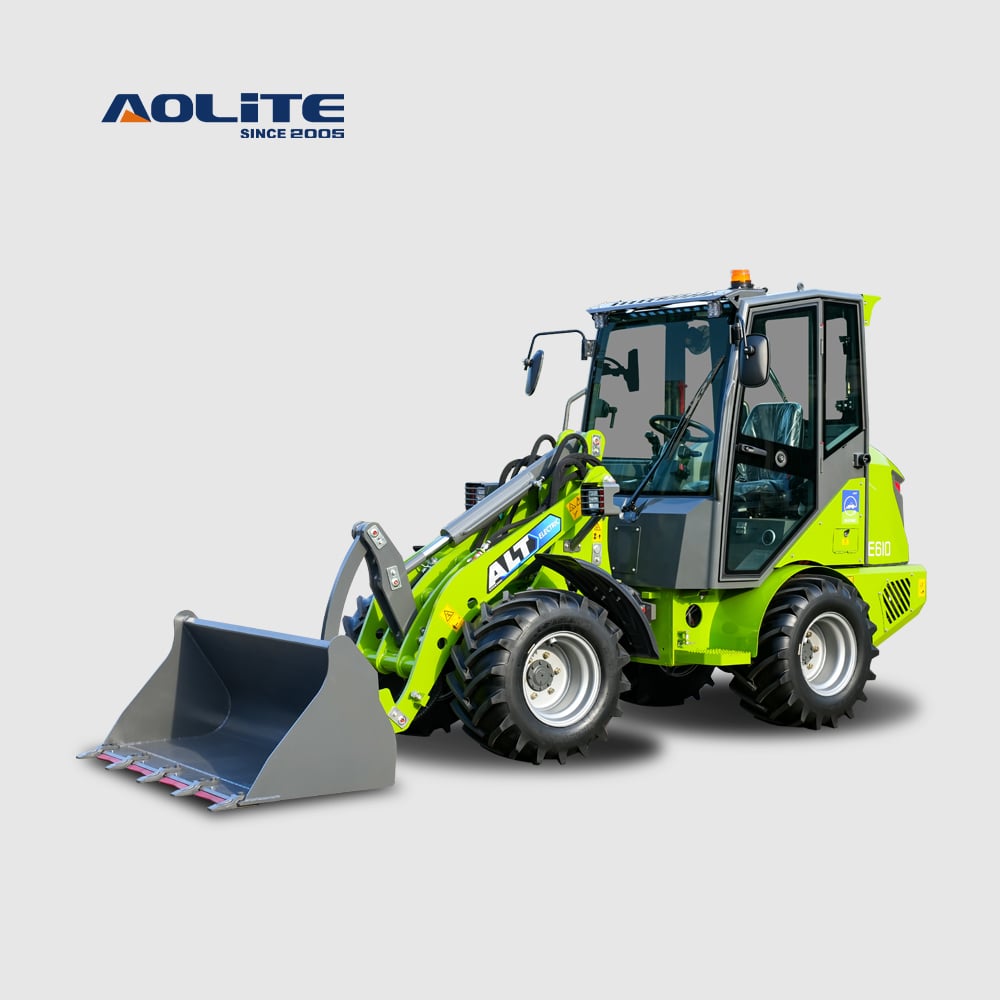

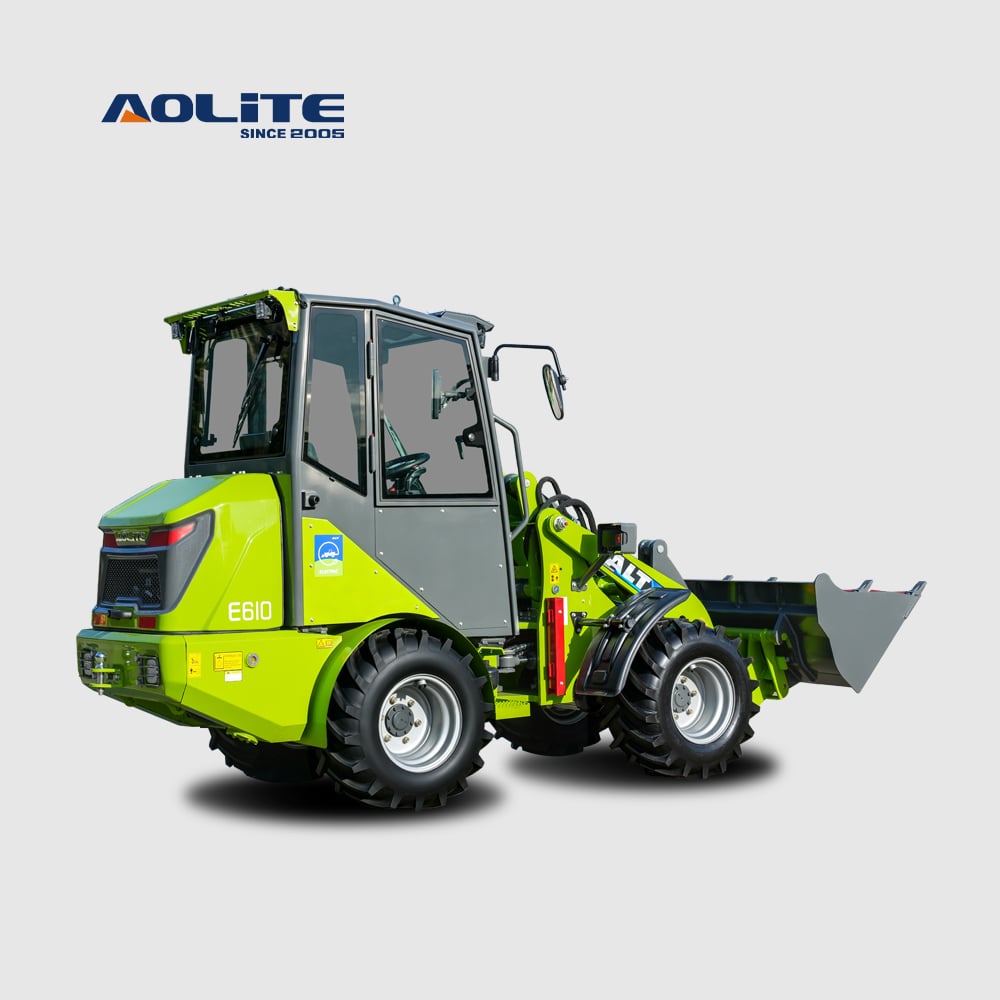

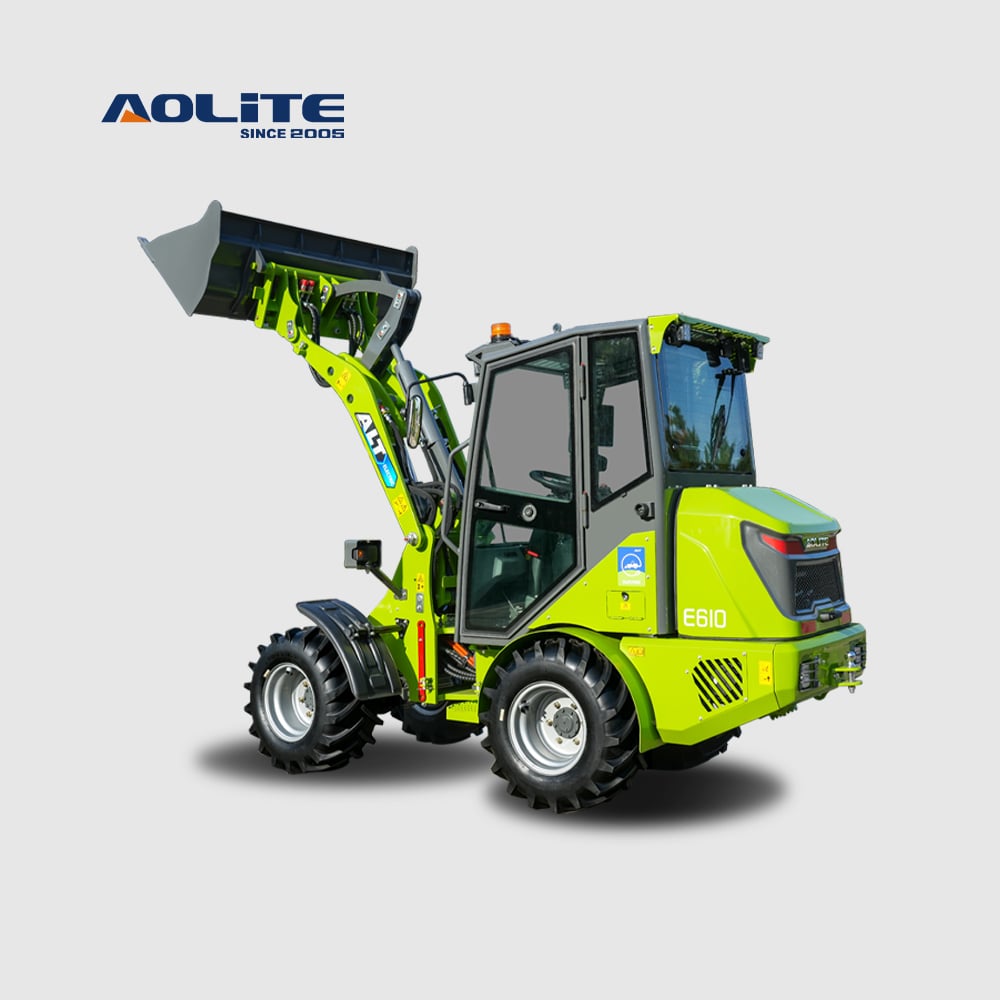

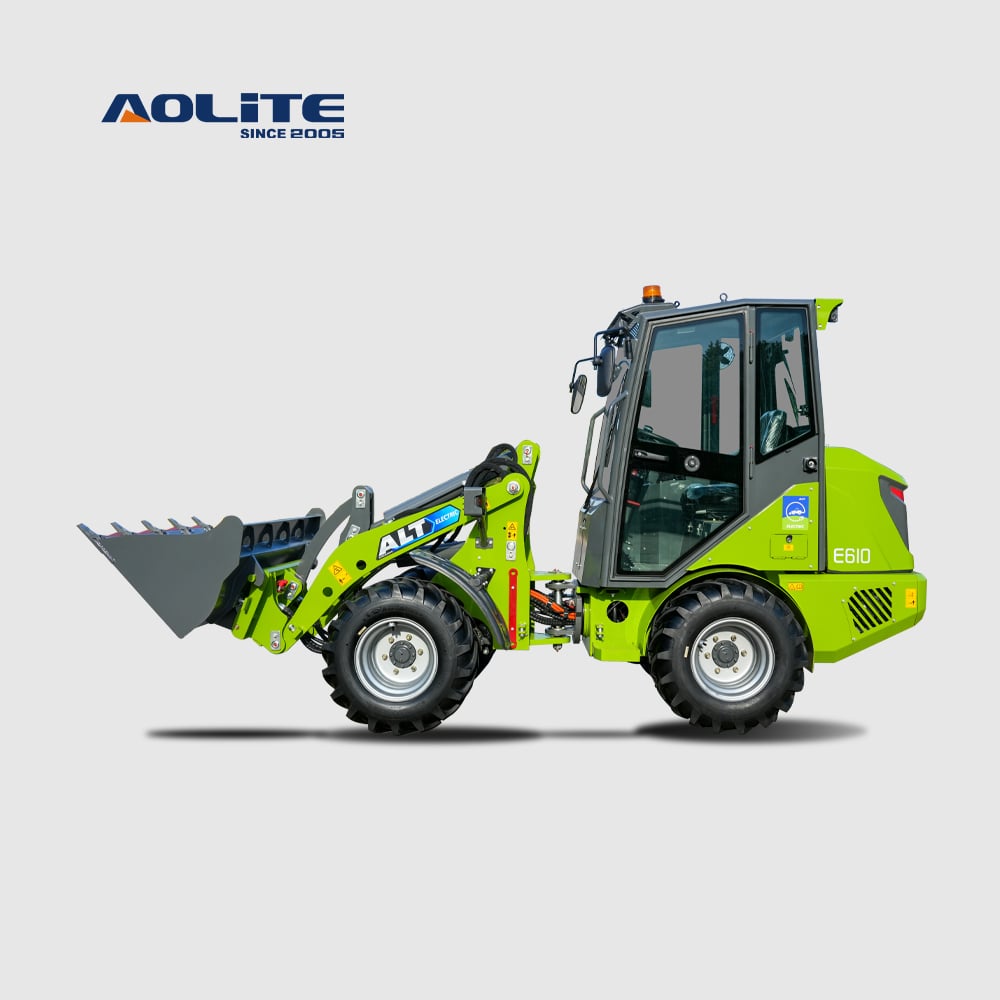

AOLITE E610 Pro Electric wheel loader
The E610 Pro is a zero-emission, low-noise compact electric wheel loader with articulated steering for tight-space access. Fully CE certified, it offers a foldable canopy or enclosed cab, LiFePO4 blade battery with 8-year warranty, and quick-change attachments, delivering up to 6 hours of runtime per charge with 2-hour fast charging — ideal for green construction.
product description
 |
|||

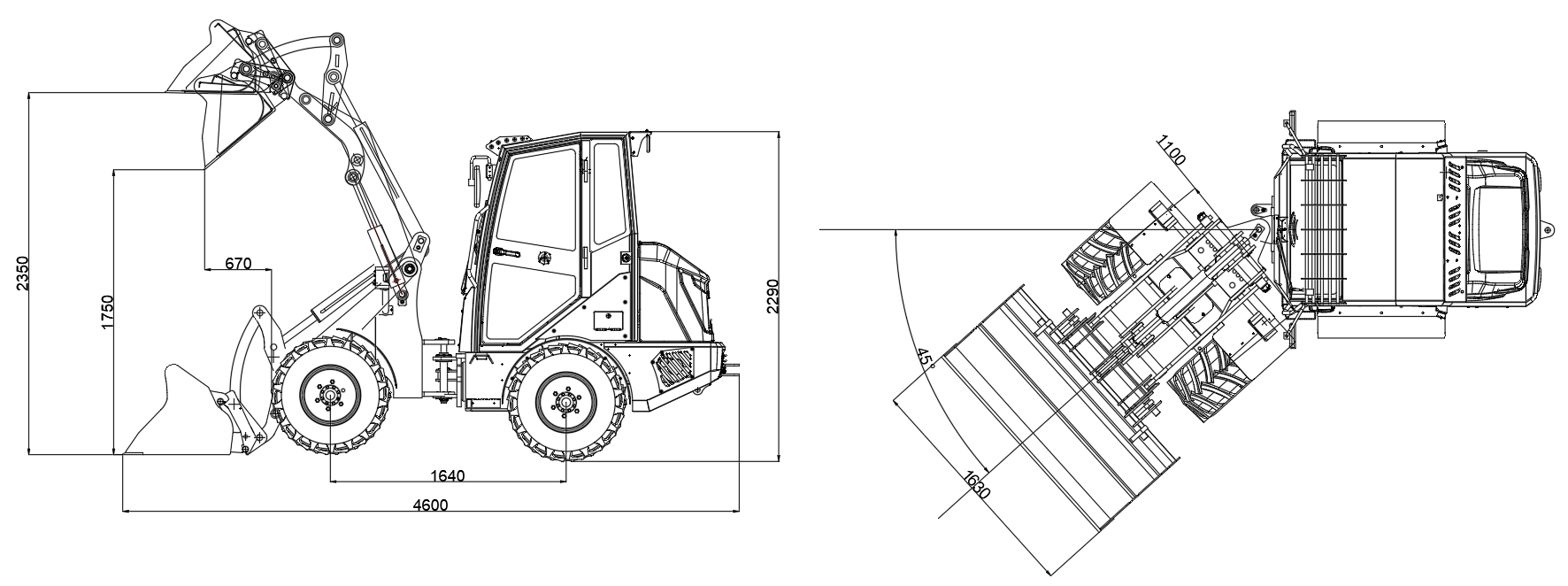

| Model | E610 Pro | Travel Motor Quantity | 2 |
| Operating Weight (kg) | 2760 | Hydraulic System Rated Power (kW) | 10 |
| Rated Load Capacity (kg) | 1100 | Hydraulic System Flow Rate (L/min) | 40 |
| Lifting Height (mm) | 2300 | Hydraulic System Pressure (MPa) | 20 |
| Dumping Height (mm) | 1710 | Battery Model | 73.6V/350Ah |
| Dumping Reach (mm) | 670 | Battery Type | Lithium Iron Phosphate (LFP) |
| Overall Dimensions (L/W/H) (mm) | 4560*1630*2290 | Battery Pack Quantity | 1 |
| Bucket Width (mm) | 1630 | Total Battery Capacity (kWh) | 25.76 |
| Bucket Capacity (m³) | 0.42 | Rated Voltage (V) | 73.6 |
| Wheelbase (mm) | 1640 | Battery Charging Time (h) | ＜8 |
| Wheel Tread (mm) | 1100 | Operating Time (h) | 6±0.5 |
| Minimum Ground Clearance (mm) | 210 | Travel Speed (km/h) | Low 10,High 20 |
| Minimum Turning Radius(mm) | 2850 | Tire Model | 31×15.5-15 |
| Maximum Steering Angle (°) | ±45° | Tire Pressure (kPa) | 450 |
| Oscillation Angle (°) | ±8 | Tire Quantity | 4 |
| Total Cycle Time (s) | 12 | Service Brake | Hydraulic Brake |
| Travel System Rated Power (kW) | 6×2 | Parking Brake | Drum Hand Brake |

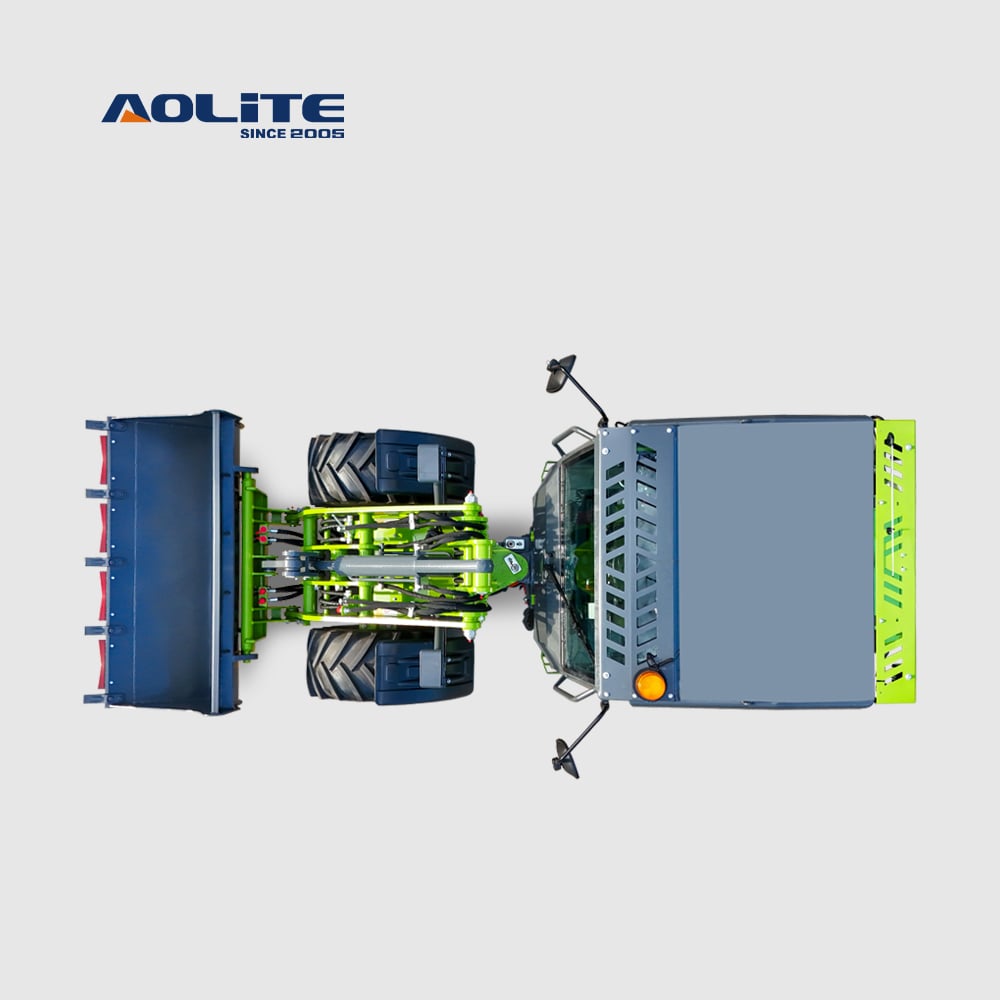

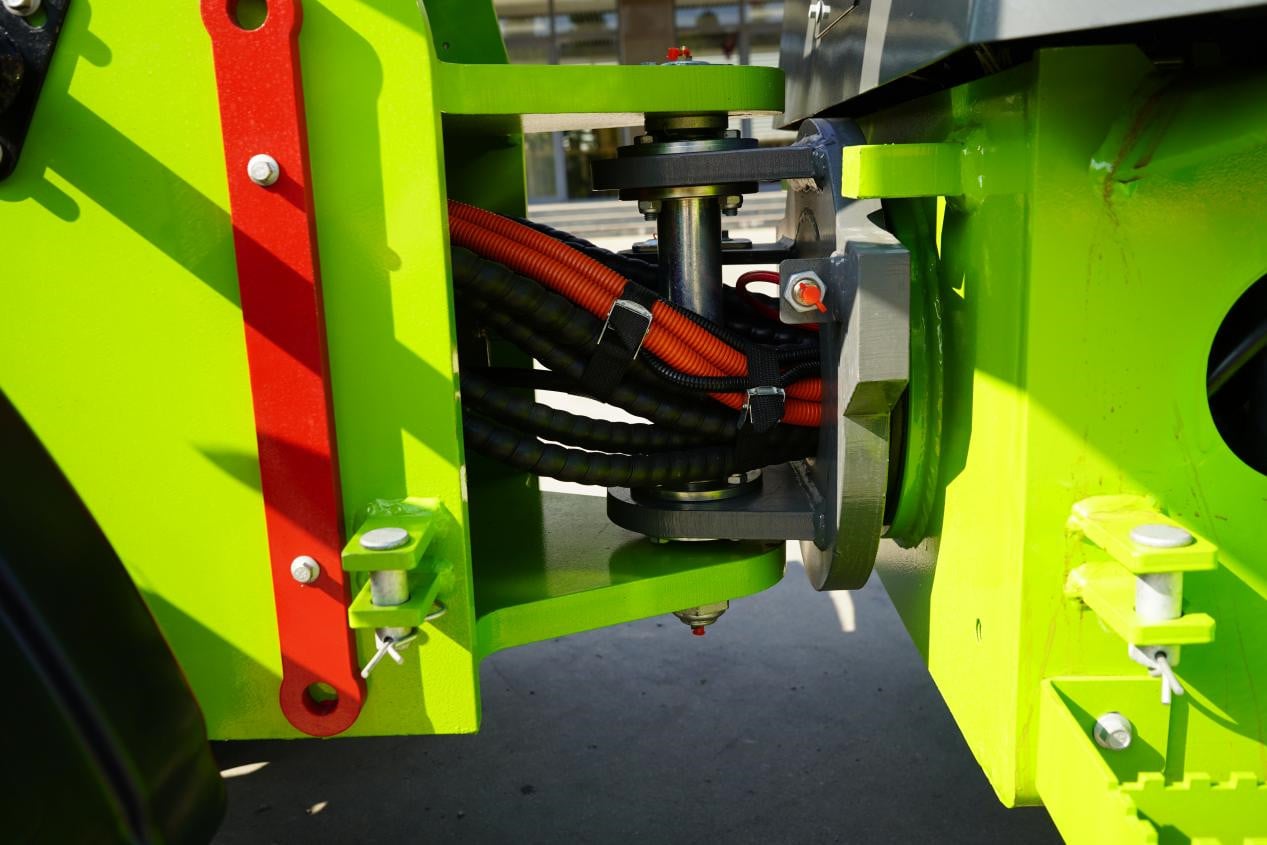

Articulated Steering System

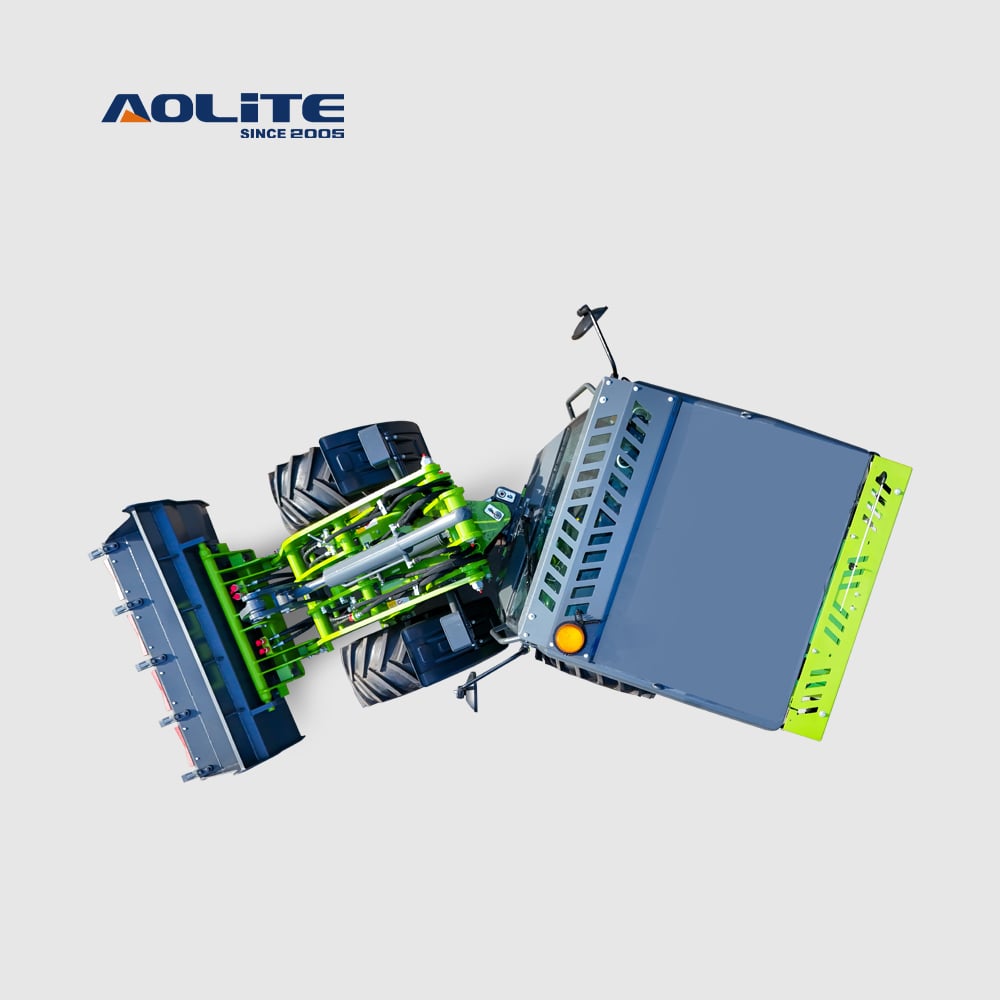

The E610 Pro features an articulated chassis with ±45° steering, a 2,850 mm turning radius, and ±8° rear axle oscillation — delivering exceptional agility in narrow aisles and confined job sites for enhanced productivity.

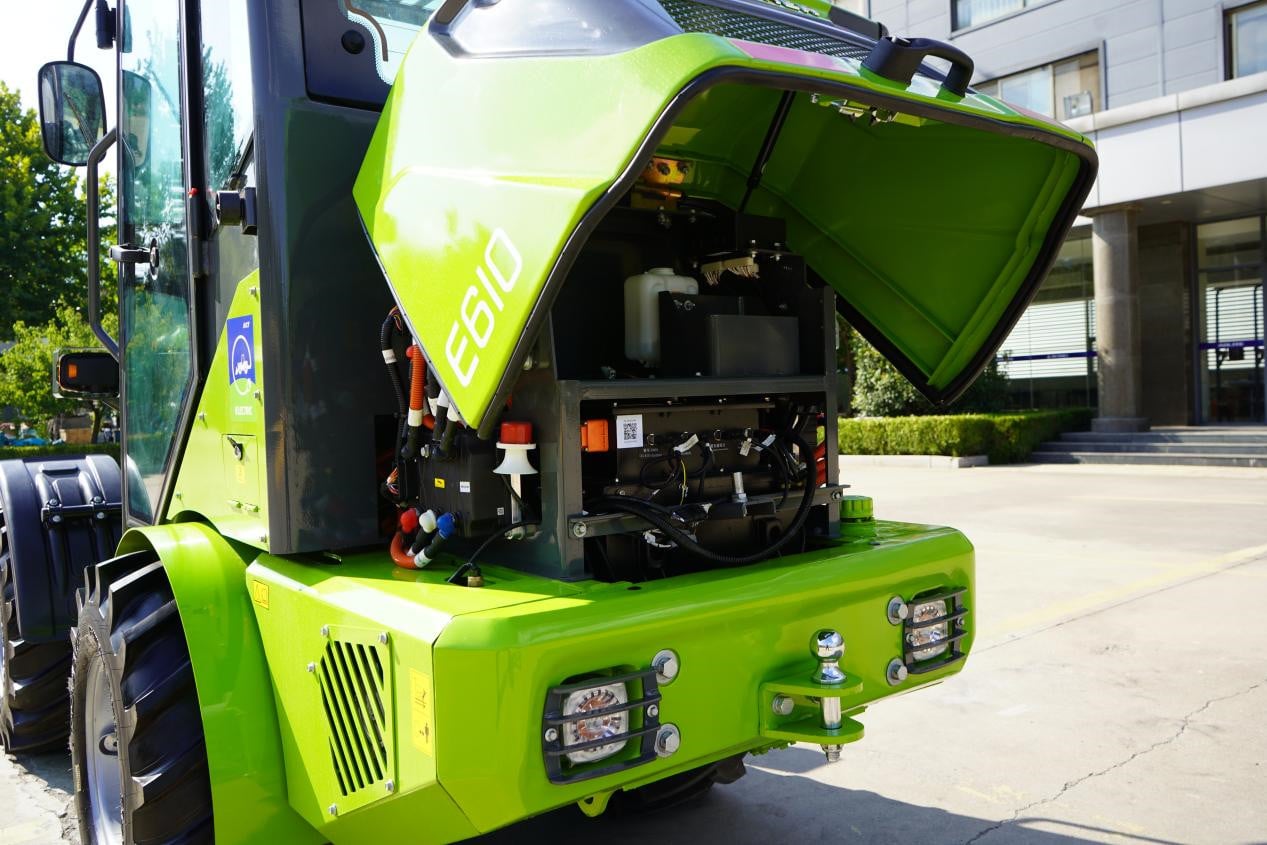

Power Battery & Charging System
Powered by a 73.6V LiFePO4 blade battery (350Ah, 25.76 kWh) with an 8-year/10,000-hour warranty, the E610 Pro charges in under 8 hours via 220V, or just 2 hours with an optional 380V fast charger.
Working Performance

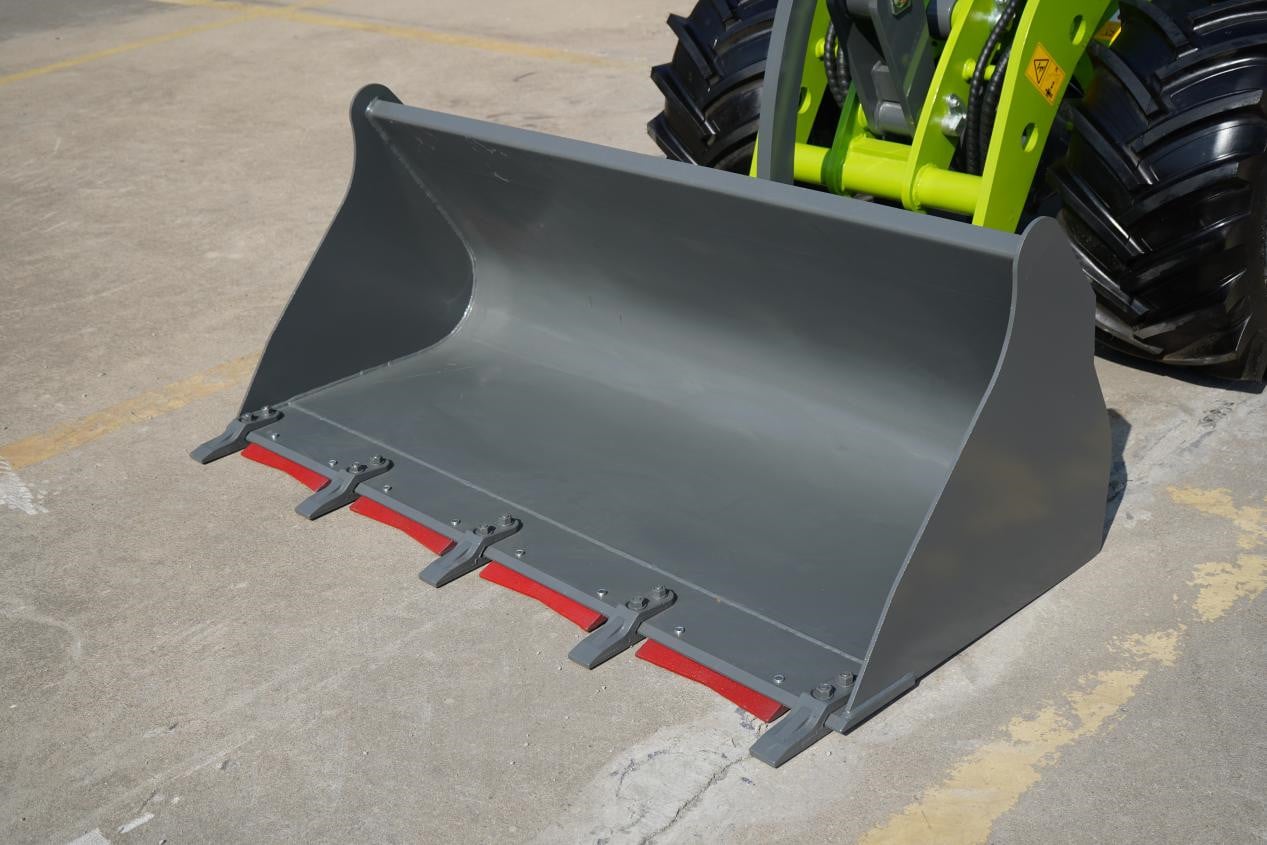

With a 1,100 kg load, 0.42 m³ bucket, 2,300 mm lift height, and 12-second cycle time, the E610 Pro delivers efficient material handling with dual-speed travel (10/20 km/h), anti-roll-back, and energy regeneration.

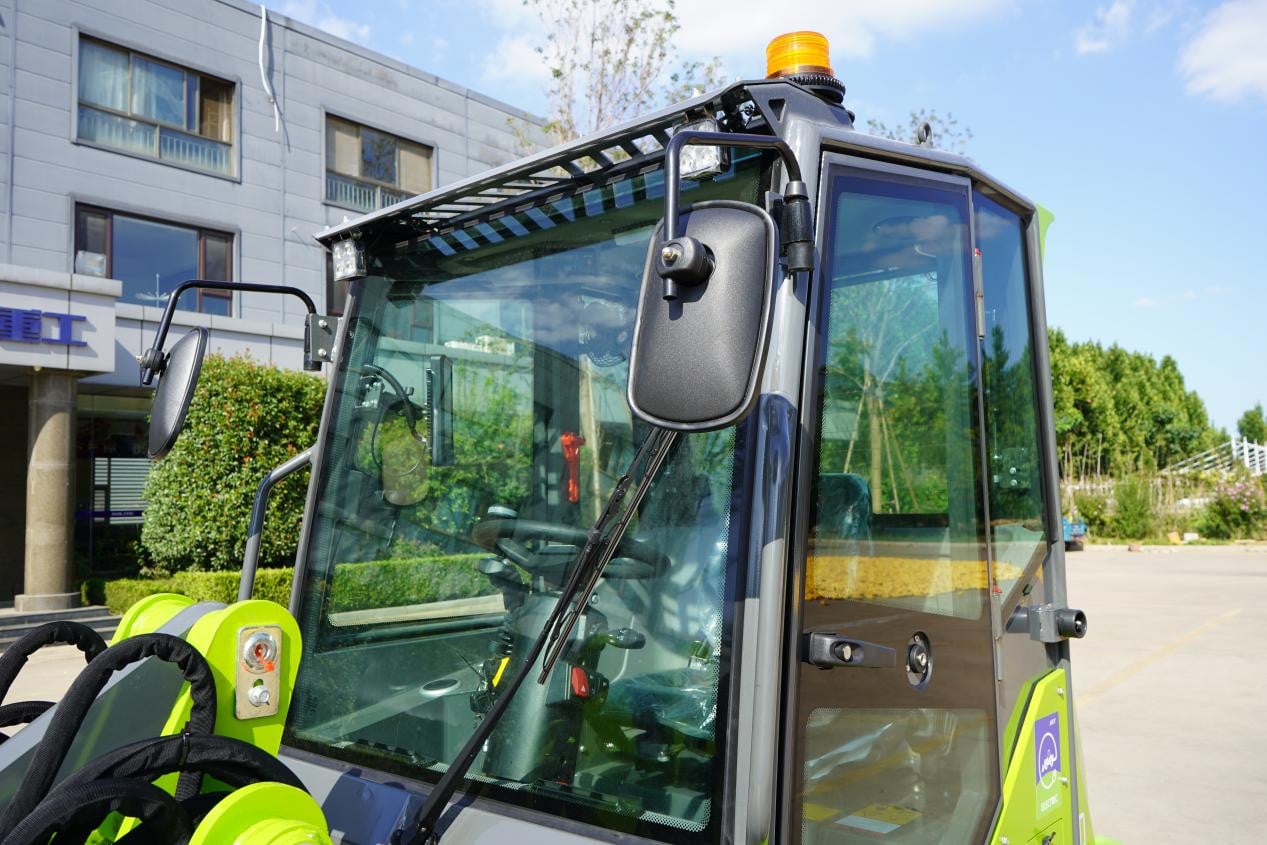

Safety & Braking System
The E610 Pro features a ROPS/FOPS structure and full-hydraulic braking with a 3-meter stopping distance, far exceeding CE standards. Emark-certified LED lights ensure visibility and road compliance.

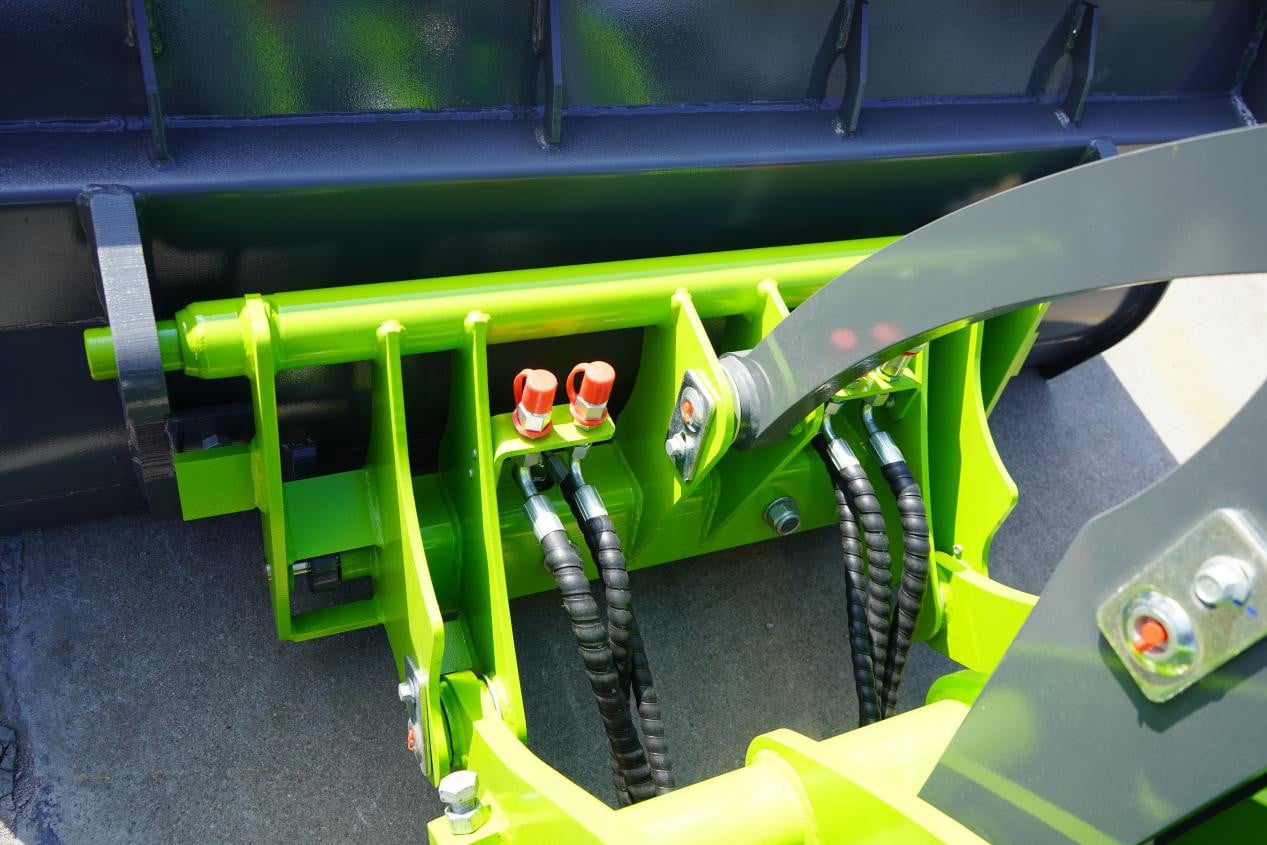

Quick-Change Attachment & Hydraulic System
4-spool hydraulic valve with Euro quick hitch and floating boom enables rapid attachment changes — buckets, forks, sweepers, and planers. Auto cooling keeps oil below 80°C during prolonged use.
Application Scenarios
Zero-emission and low-noise, the E610 Pro serves municipal, agricultural, warehousing, and landscaping applications. With 6-hour runtime and quick-change attachments — one machine, multiple functions, reducing equipment and labor costs.
