AOLITE E606Pro LiFePO4 Lithium battery electric loader 0.6ton mini front end compact wheel loader
product description
Inquiry
product description

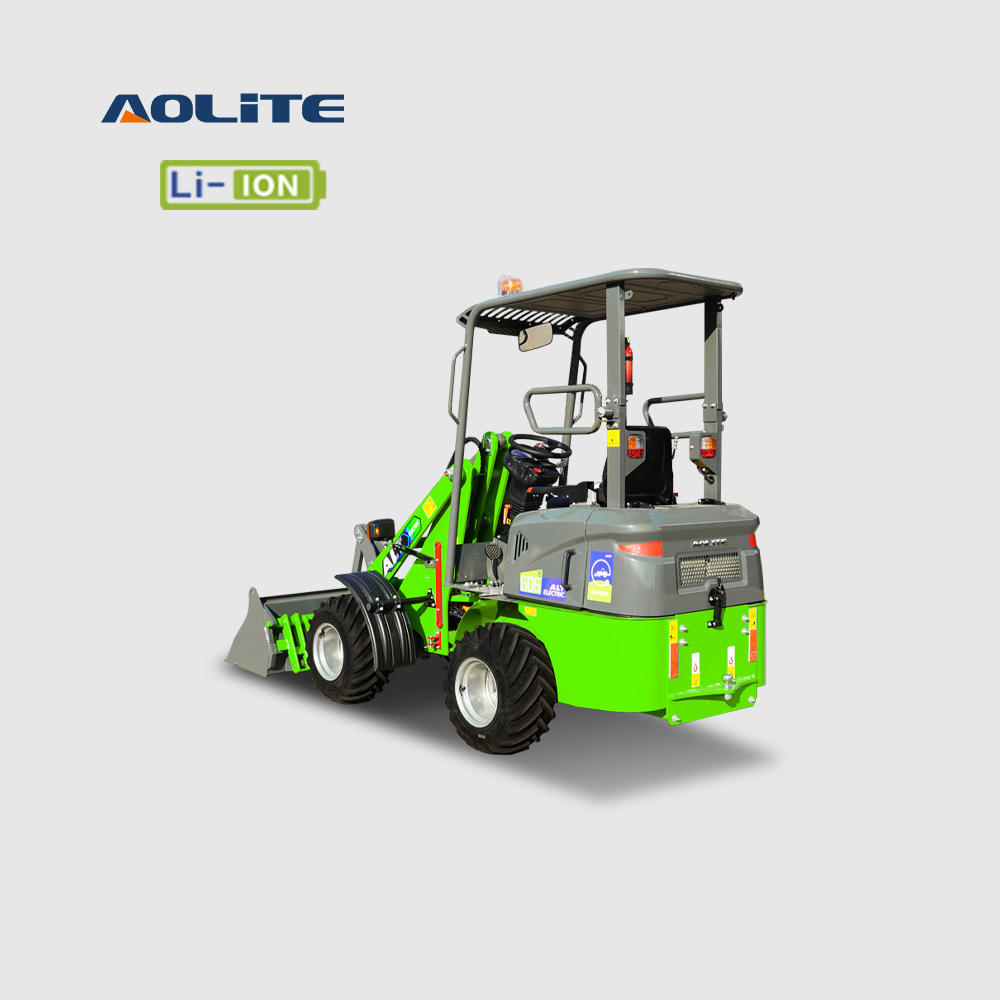

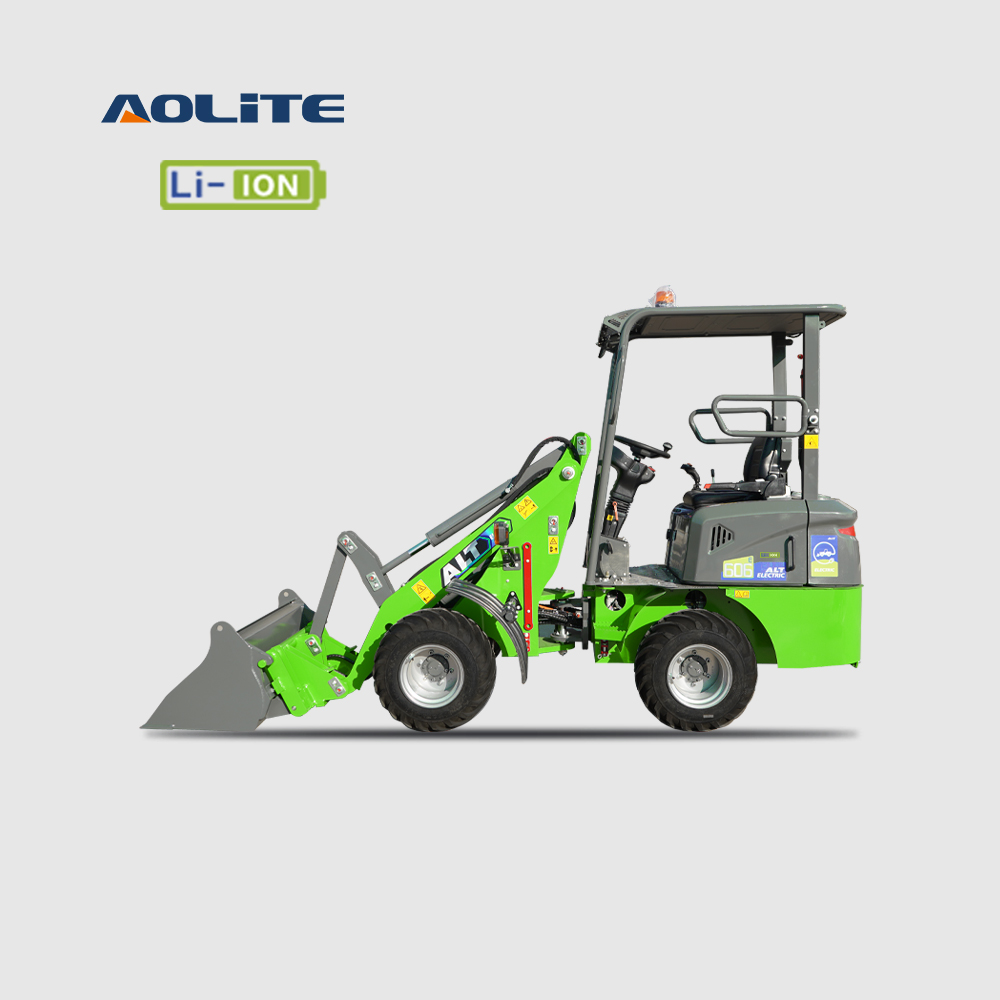

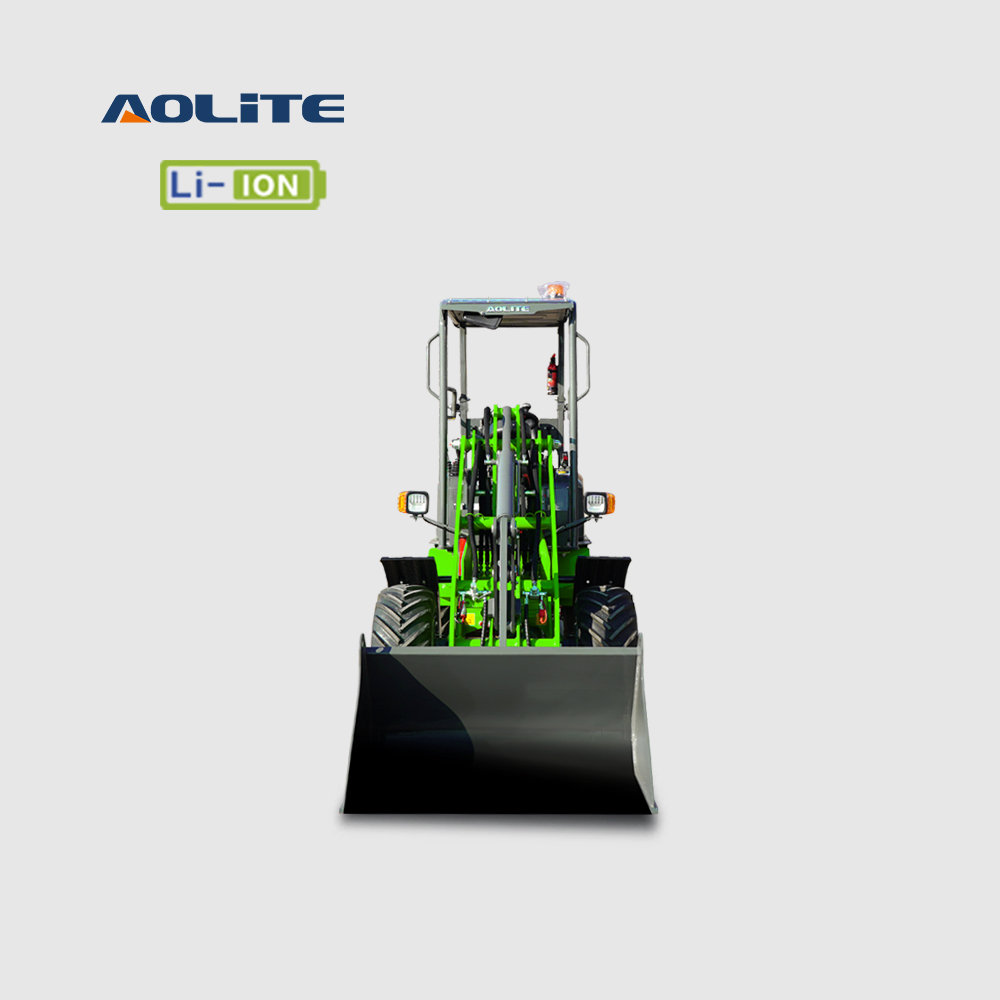

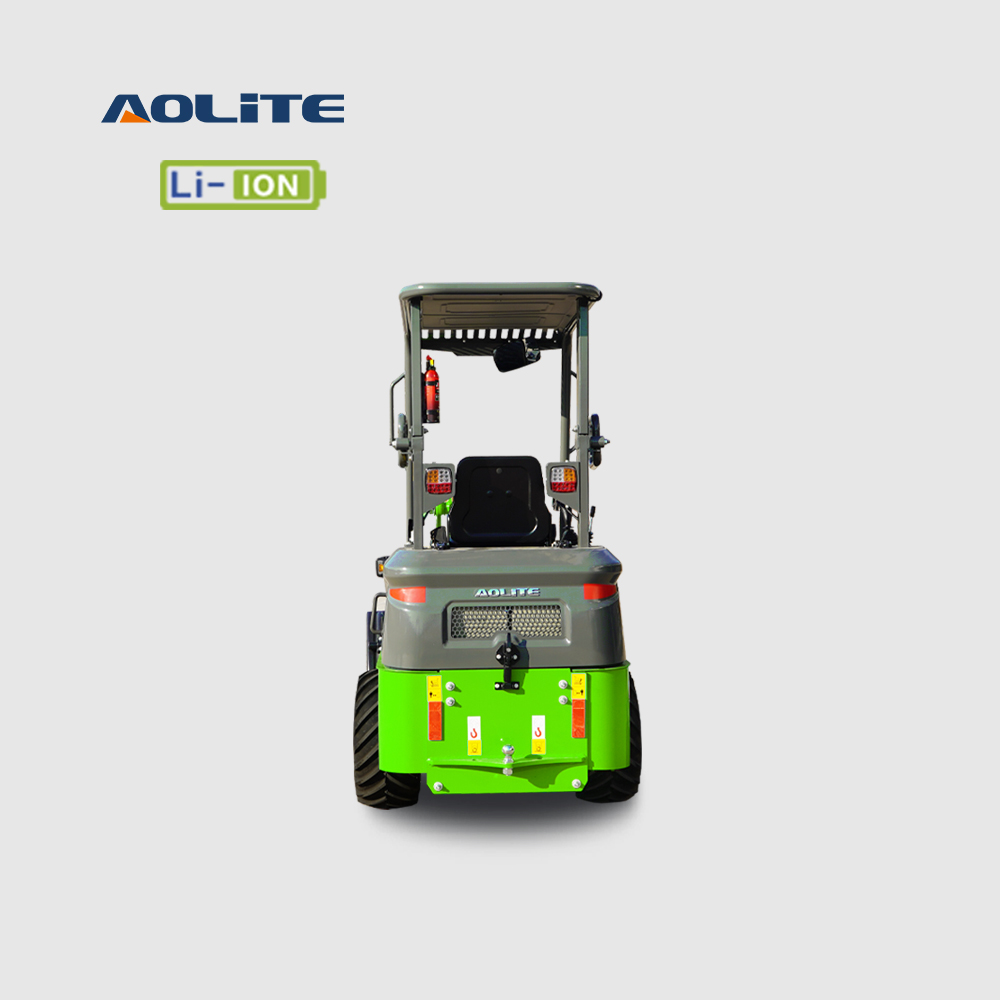

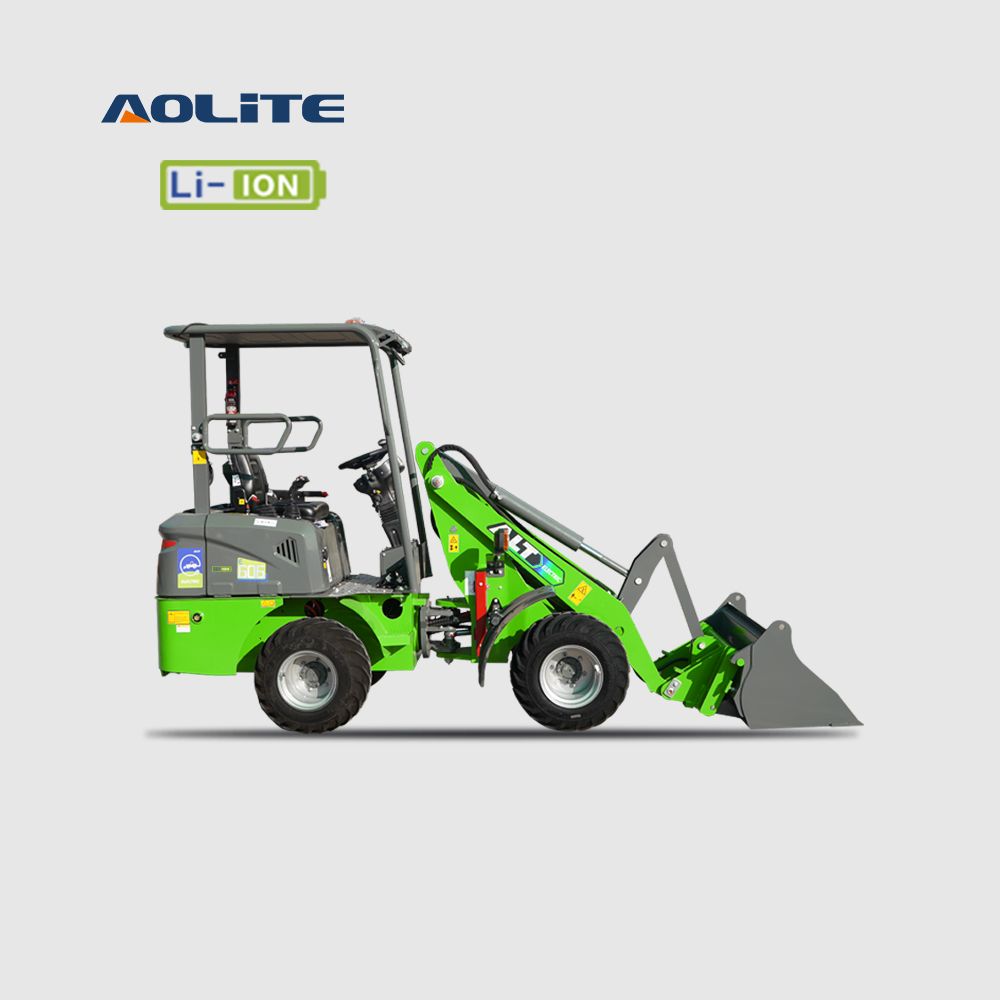

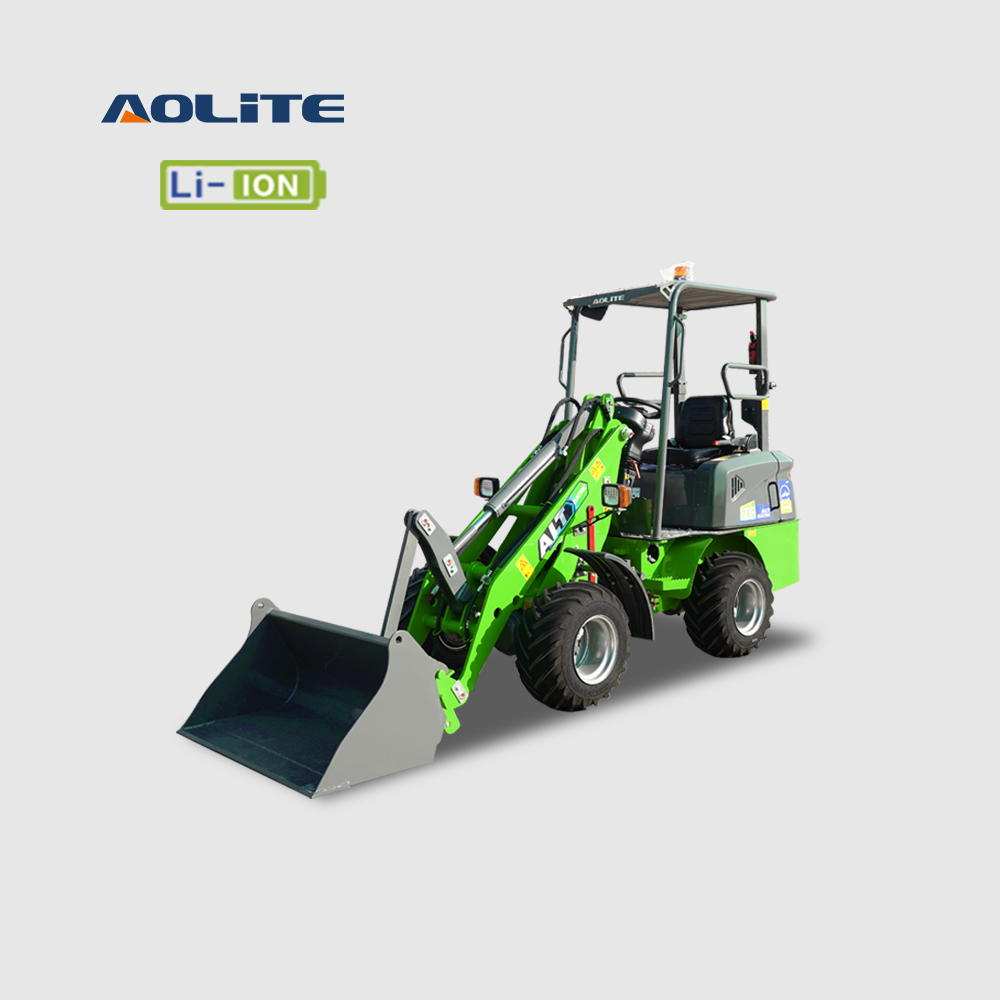

"AOLITE" brand E606Pro LiFePO4 Lithium battery electric wheel loader
AOLITE E606 PRO NEW ARRIVAL!!!
WITH "BYD SUPER LiFePO₄ LITHIUM" BATTERY
--Highest safty level
1.with 500A BMS in the lithim battery, protect it from overcharging, over-discharging, over-current, overheating and short circuits with excellent self-discharge rate;
2.The BYD "super lithium" Battery Technology has passed stringent safety tests, including crush tests, heat tests,acupuncture tests overcharging tests, which has even exceeded national standards.
3. The whole machine has passed the formal CE certification and all met the testing standards
--Highest quality performance
1. large capacity, small size, charge and discharge more than 3000 times, 3 years global warranty time;
2. IP67 waterproof standard, worry-free indoor and outdoor replacement operations;
3. 220V fully charged in 5 hours, 380V fully charged in 1.5 hours;
4. With 72-hour automatic power off, battery heating, low-temperature charging and other functions.
--Easiest maintenance solution
1.BMS battery management system completed inspection;
2.Bluetooth connection, battery parameters can be seen through the mobile app;
3.Optional remote maintenance function, which can remotely detect and upgrade the battery at any time;
4.24-hour professional engineer online service to provide users with the best solutions at any time.
--Most comprehensive customized service
1.Different color schemes are available, if you want to customize a unique color, just send us the color number.
2.Customized logos are acceptable, no minimum order quantity required, free design of trademark patterns available
3.A variety of attachments are available, and we accept customers to provide drawings or pictures to customize different attachments.
Specifications:
SPECIFICATION | rated load/bucket capacity | 650kg/0.25m3 |
overall weight | 1900kg | |
overall dimension | 3810*1260*2270mm | |
max.steering angle/radius | 45°/2050mm | |
amplitude of the rear axle | 19° | |
total cycle time | 8s | |
work time/ charge time | 7 hours/5 hours | |
driving speed | low speed 10km/h,high speed 20km/h | |
dumping height/lifting height/dumping reach | 2170mm/3330mm/405mm | |
wheel base/wheel thread/mini. ground clearance | 1380mm/945mm/200mm | |
battery model/type | Lithium iron phosphate Battery (BYD Blade battery)/73.6-240 | |
battery quantity/capacity/rated voltage | 1 pcs/17.7kw/73.6V | |
electrical system voltage | 12V | |
hydraulic system type/voltage/ power/displacement | Alternating current/ 73.6V/4.5kw/18ml/r | |
hdyraulic system motor speed/pressure | 800r/min (low speed), 2200r/min (high speed)/16mpa | |
steering hydraulic system type/pressure | full hydraulic/14 mpa | |
steering pump model | 5-125 | |
walking system power type/voltage/power | Alternating current/ 73.6V/9kw | |
walking system motor quantity | 2 pcs | |
tire model/pressure/quantity | 26x12.00-12/0.25mpa/4 pcs | |
working break/ parking brake | drum oil break/ drum hand break |
AOLITE Brand E606Pro wheel loader package:
-- 3~4 sets in 1*20GP container
-- 8 sets in 1*40HQ container
